272196

Name: 272196
SKU: 272196
Price: 999.00 USD
Availability: InStock

$999.00

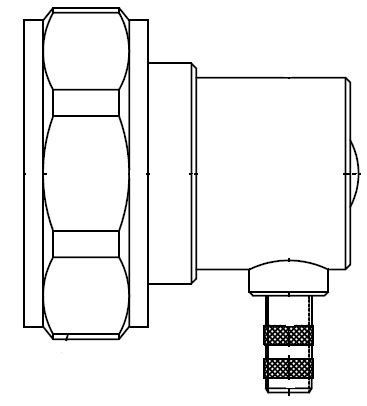

7-16 Right Angle Crimp Plug RG-8X Times LMR-240 Optimized 50 Ohm

SKU: 272196 Category: 7-16 Connectors

RF Connector 7-16 Right Angle Crimp Plug RG-8X Times LMR-240 Optimized 50 Ohm

Manufacturer	Amphenol RF
Body Finish	White Bronze
Body Material	Brass
Cable Group	X
Cable Type	Belden 9258, RG-8X, Times LMR-240, Times LMR-240 UltraFlex
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	Yes
Frequency (Max GHz)	7.5
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Silver
Contact Material	Beryllium Copper
Contact Termination	Solder
Coupling Mechanism	Threaded
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
