RF Connector 7-16 Straight Solder Jack 1/2-in Helical Corrugated Bulkhead 50 Ohm
7-16 Connectors
272FJBH4
$999.00

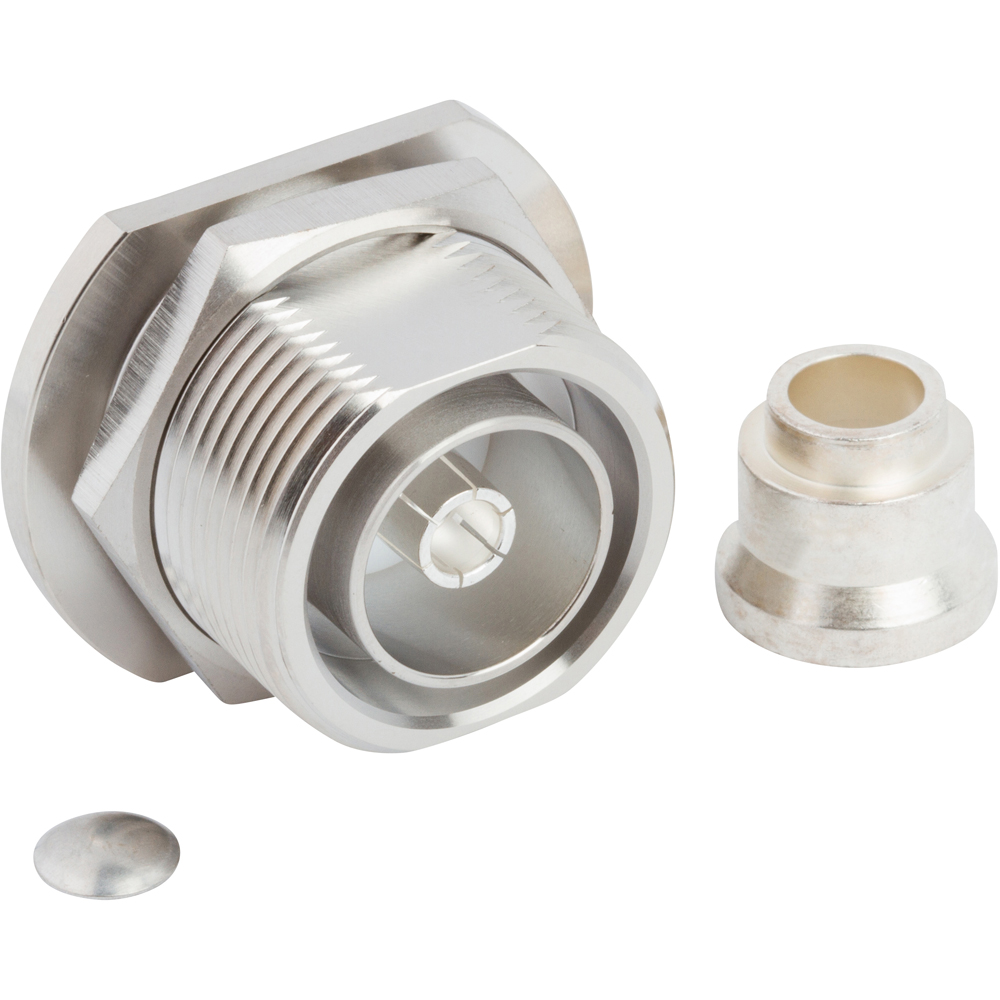

7-16 Straight Solder Jack 1/2-inch Helical Corrugated Bulkhead 50 Ohm
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | HE3 |
| Cable Type | 1/2-inch Helical Corrugated |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Bulkhead – Rear Mount |
| Isolated | No |
| Low PIM | Yes |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Brass |
| Orientation | Straight |
| Contact Termination | Solder |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Solder |
