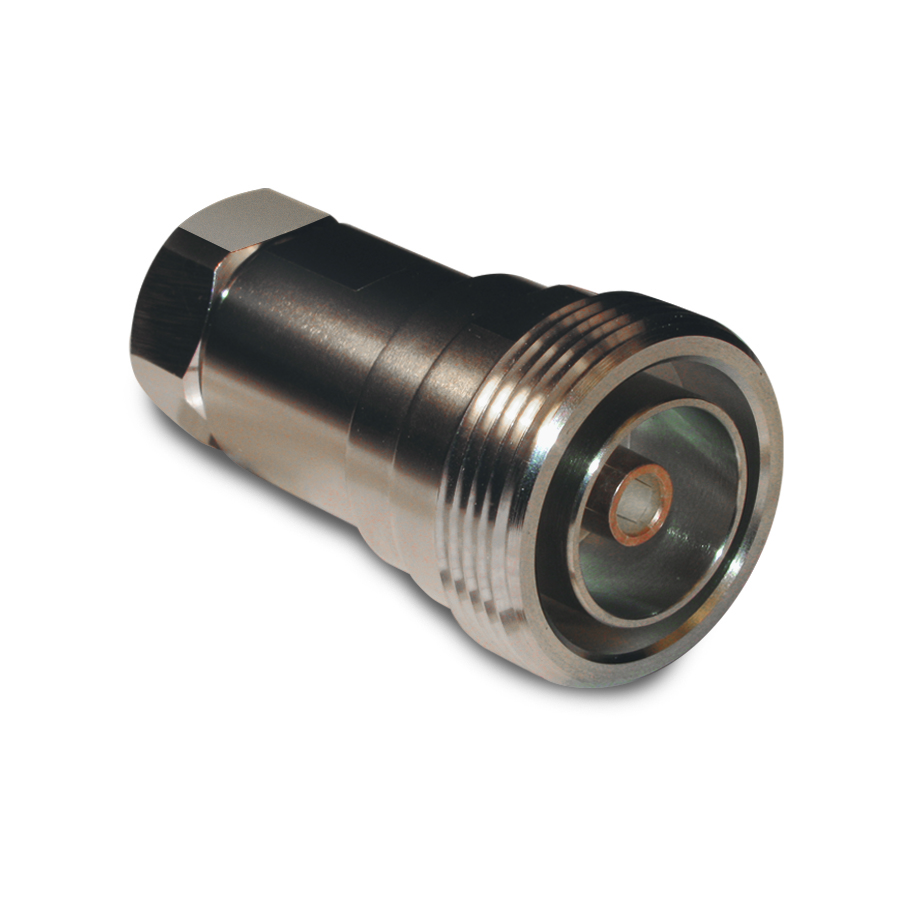

RF Connector 7-16 Straight Clamp Jack 1/2-in Helical Corrugated 50 Ohm
| Manufacturer | Amphenol RF |
|---|---|
| Cable Group | HE3 |
| Cable Type | 1/2-inch Helical Corrugated |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | Yes |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Orientation | Straight |
| Contact Termination | Not Applicable |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
