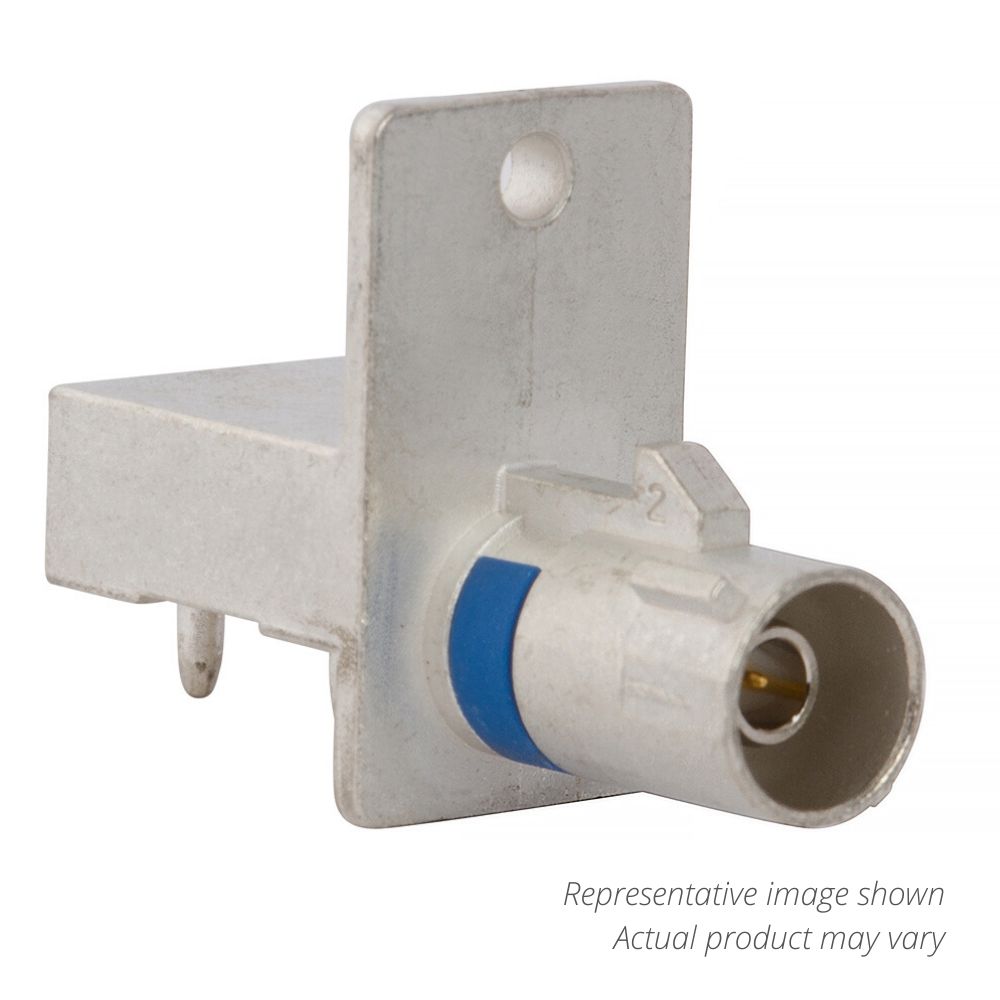

RF Connector FAKRA Generation 2 PCB Through Hole Right Angle Plug 50 Ohm A Key Code
FAKRA Connectors
2FA1-NASP-PCB-3
$999.00
FAKRA GEN 2 PCB Through Hole Right Angle Plug 50 Ohm A Key Code
| Weight | 0.00965 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Tin |
| Body Material | Zinc Diecast |
| Cable Group | Not Applicable |
| Cable Type | Not Applicable |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 3 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination | Solder |
| Coupling Mechanism | Push-on |
| Mating Cycles (Min) | 100 |
| Termination Style | PCB – Through Hole |
| FAKRA Generation | 2 |
| FAKRA Keycode | A – Jet Black |
