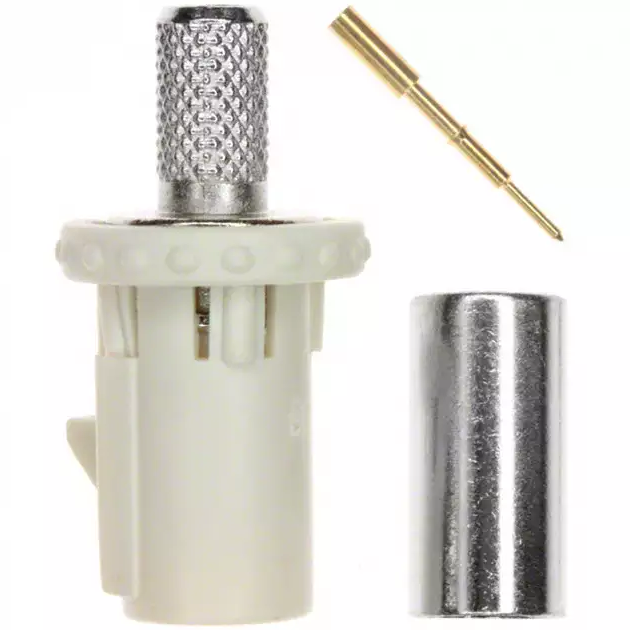

RF Connector FAKRA Generation 2 Straight Crimp Plug RG-58 RG-141 Times LMR-195 50 Ohm B Key Code
FAKRA Connectors
2FA1-NBSP-C04-1
$999.00
FAKRA GEN 2 Straight Crimp Plug RG-58 RG-141 Times LMR-195 50 Ohm B Key Code
| Weight | 0.003079 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Zinc Diecast |
| Cable Group | C |
| Cable Type | Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311, RG-141, RG-58, Times LMR-195, Times LMR-200-LLPL |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 2 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Coupling Mechanism | Push-on |
| Mating Cycles (Min) | 100 |
| Termination Style | Cable – Crimp |
| FAKRA Generation | 2 |
| FAKRA Keycode | B – Cream |
