2FA1-NZSP-C04-1

Name: 2FA1-NZSP-C04-1
SKU: 2FA1-NZSP-C04-1
Price: 999.00 USD
Availability: InStock

$999.00

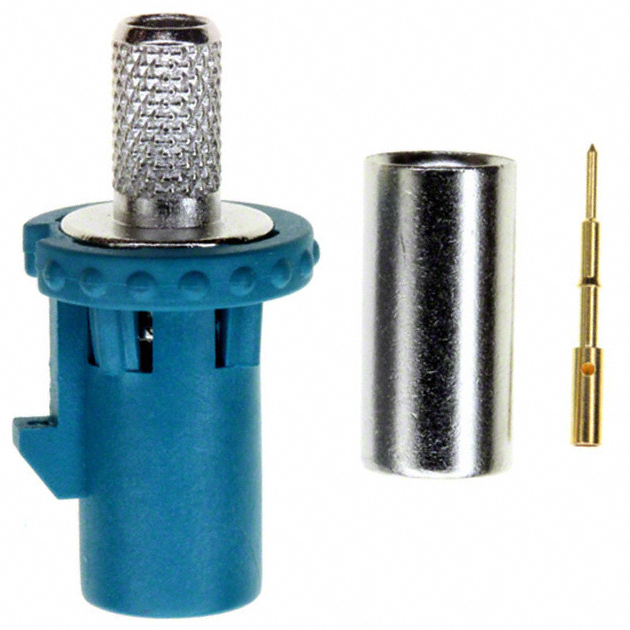

FAKRA GEN 2 Straight Crimp Plug RG-58 RG-141 Times LMR-195 50 Ohm Z Key Code

SKU: 2FA1-NZSP-C04-1 Category: FAKRA Connectors

RF Connector FAKRA Generation 2 Straight Crimp Plug RG-58 RG-141 Times LMR-195 50 Ohm Z Key Code

Weight	0.003079 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Zinc Diecast
Cable Group	C
Cable Type	Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311, RG-141, RG-58, Times LMR-195, Times LMR-200-LLPL
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	No
Frequency (Max GHz)	2
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Crimp
Coupling Mechanism	Push-on
Mating Cycles (Min)	100
Termination Style	Cable – Crimp
FAKRA Generation	2
FAKRA Keycode	Z – Water Blue (Universal)
