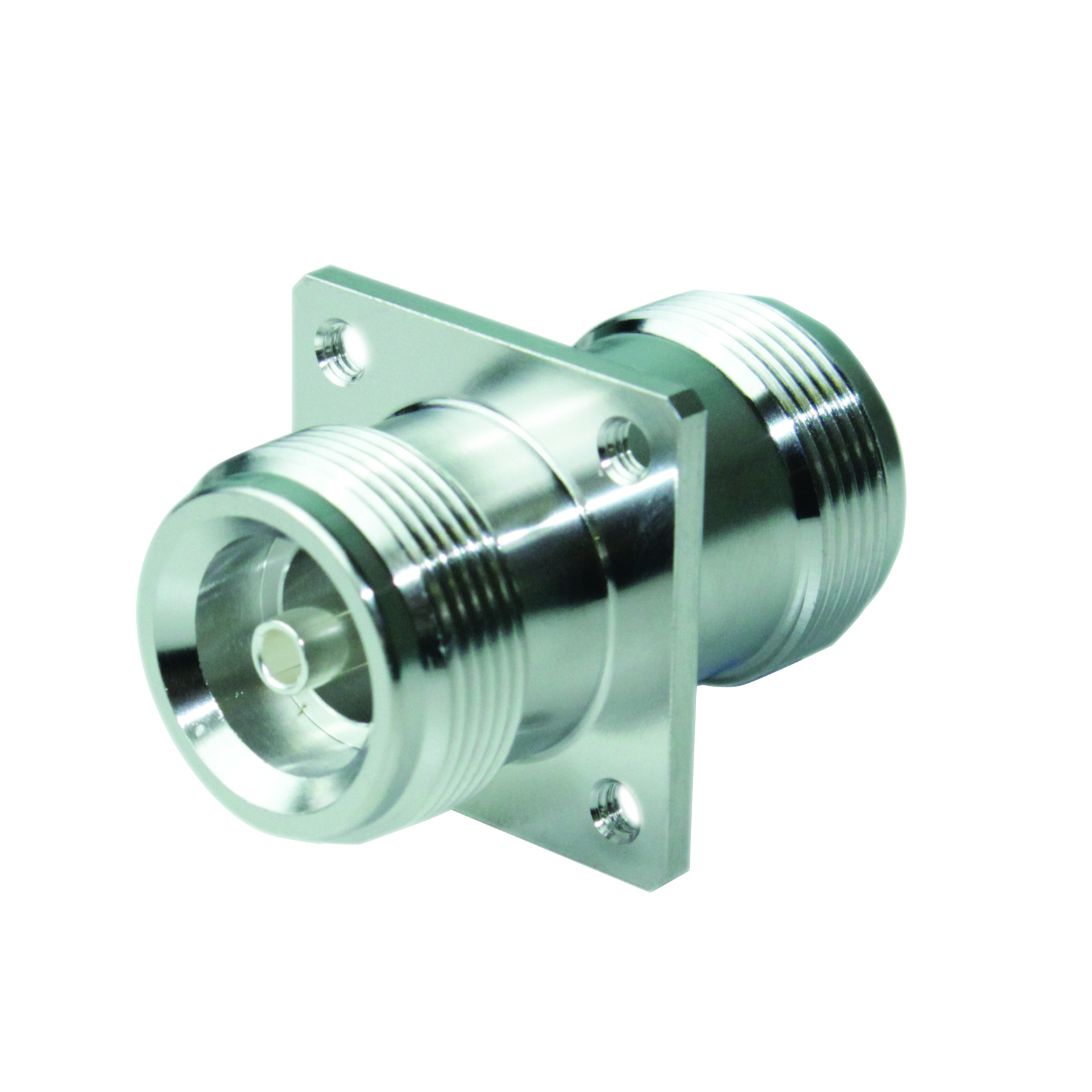

4.1/9.5 Jack to 4.1/9.5 Jack Adapter 50 Ohm Straight 4-Hole Flange
4.1-9.5 to 4.1-9.5 Adapters
332109
$999.00
4.1-9.5 Jack to 4.1-9.5 Jack Adapter 50 Ohm Straight 4-Hole Flange
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Panel Mounting Feature | 4-Hole Flange |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | Yes |
| Frequency (Max GHz) | 2.5 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Adapter Side 1 Series | 4.1-9.5 |
| Adapter Side 1 Style | Jack |
| Adapter Side 2 Series | 4.1-9.5 |
| Adapter Side 2 Style | Jack |
| Contact Finish | Silver |
| Contact Material | Beryllium Copper |
