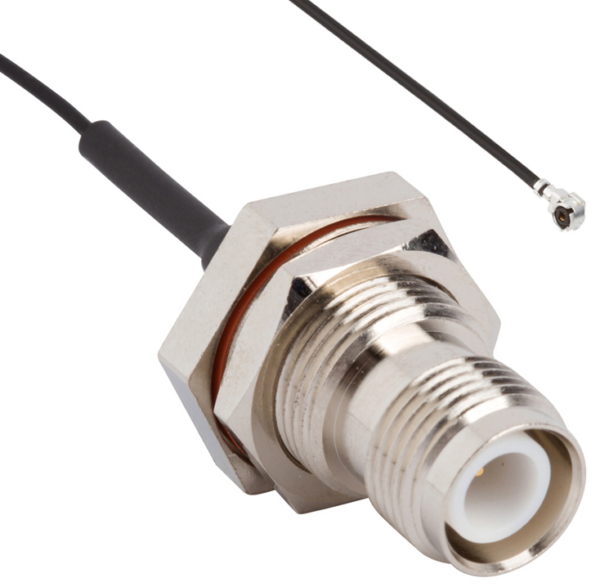

RF Cable Assembly AMC Right Angle Plug to RP-TNC Straight Bulkhead Jack IP67 1.13 mm 50 Ohm 300 mm (11.8 Inches)
AMC to RP-TNC Cable Assemblies, RP-TNC to AMC Cable Assemblies
336212-12-0300
$30.14
AMC Right Angle Plug to RP-TNC Straight Bulkhead Jack IP67 1.13 mm 50 Ohm 300 mm (11.8 Inches)
| Manufacturer | Amphenol RF |
|---|---|
| Cable Group | P2 |
| Impedance (Ohms) | 50 |
| IP Rating | IP67 |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Non Magnetic | No |
| Connector 1 Series | AMC |
| Connector 1 Style | R/A Plug |
| Connector 1 Part Number | AMC Cable Plug |
| Connector 2 Series | RP-TNC |
| Connector 2 Style | Str Blkhd Jack IP67 |
| Connector 2 Part Number | 122542RP |
| Cable Type | 1.13 mm Micro-cable |
| Cable Assembly Length | 11.81 in (300 mm) |
