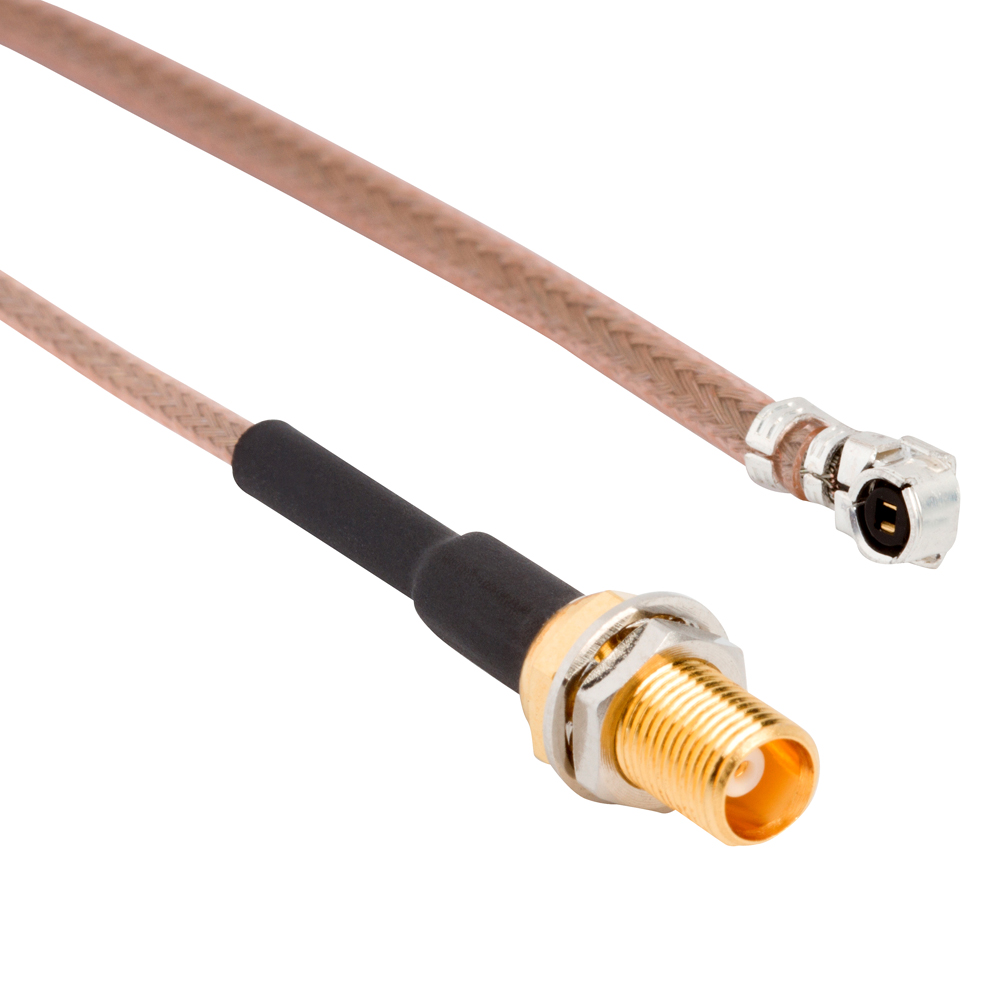

RF Cable Assembly AMC Right Angle Plug to MCX Straight Bulkhead Jack RG-178 50 Ohm 300 mm (11.81 Inches)
AMC to MCX Cable Assemblies, MCX to AMC Cable Assemblies
336503-08-0300
$18.49
AMC Right Angle Plug to MCX Straight Bulkhead Jack RG-178 50 Ohm 300 mm (11.81 Inches)
| Weight | 0.00455 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Cable Group | A |
| Impedance (Ohms) | 50 |
| IP Rating | Not Rated |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Non Magnetic | No |
| Connector 1 Series | AMC |
| Connector 1 Style | R/A Plug |
| Connector 1 Part Number | AMC Cable Plug |
| Connector 2 Series | MCX |
| Connector 2 Style | Str Blkhd Jack |
| Connector 2 Part Number | 252167 |
| Cable Type | RG-178 |
| Cable Assembly Length | 11.81 in (300 mm) |
