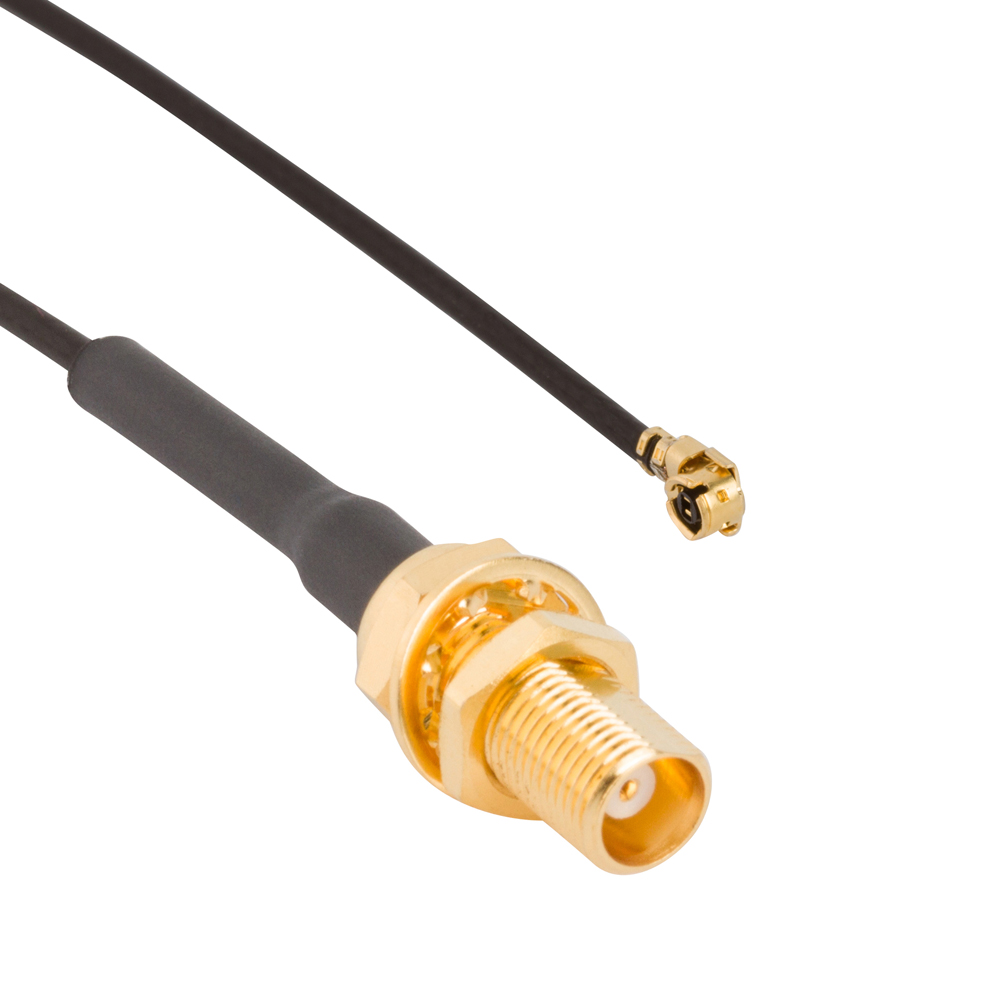

RF Cable Assembly AMC Right Angle Plug to MCX Straight Bulkhead Jack 1.32 mm DS 50 Ohm 150 mm ( 5.9 Inches)
AMC to MCX Cable Assemblies, MCX to AMC Cable Assemblies
336503-13-0150
$999.00
AMC Right Angle Plug to MCX Straight Bulkhead Jack 1.32 mm DS 50 Ohm 150 mm ( 5.9 Inches)
| Manufacturer | Amphenol RF |
|---|---|
| Cable Group | P3 |
| Impedance (Ohms) | 50 |
| IP Rating | Not Rated |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Non Magnetic | No |
| Connector 1 Series | AMC |
| Connector 1 Style | R/A Plug |
| Connector 1 Part Number | AMC Cable Plug |
| Connector 2 Series | MCX |
| Connector 2 Style | Str Blkhd Jack |
| Connector 2 Part Number | 252200 |
| Cable Type | 1.32 mm Micro-cable |
| Cable Assembly Length | 5.91 in (150 mm) |
