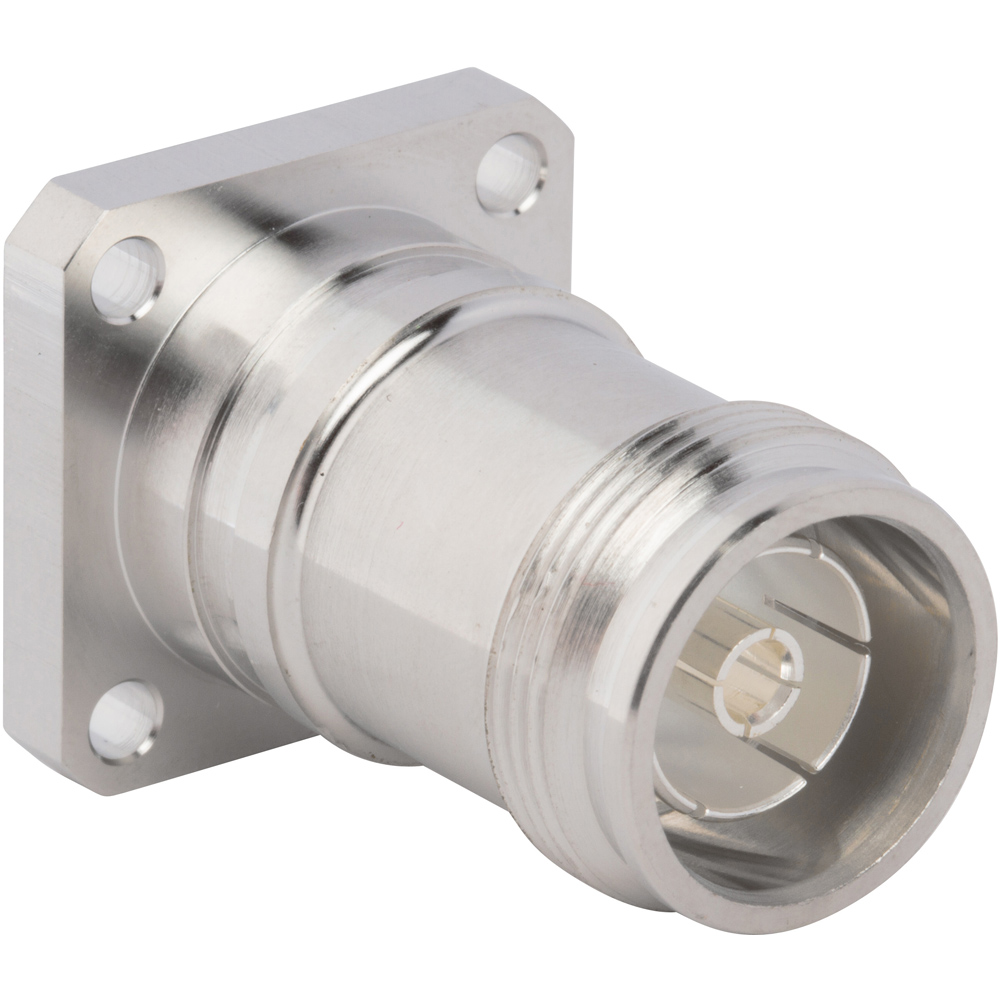

RF Connector 4.3-10 Panel Mount Jack 4-Hole Flange M3 Threaded 50 Ohm IP67 Recessed
| Weight | 0.05894 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | Not Applicable |
| Cable Type | Not Applicable |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | IP67 |
| Gender | Jack |
| Panel Mounting Feature | 4-Hole Flange |
| Operating Level | Performance |
| Isolated | No |
| Low PIM | Yes |
| Frequency (Max GHz) | 6 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Silver |
| Orientation | Straight |
| Contact Termination | Solder |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | M3 Threaded |
