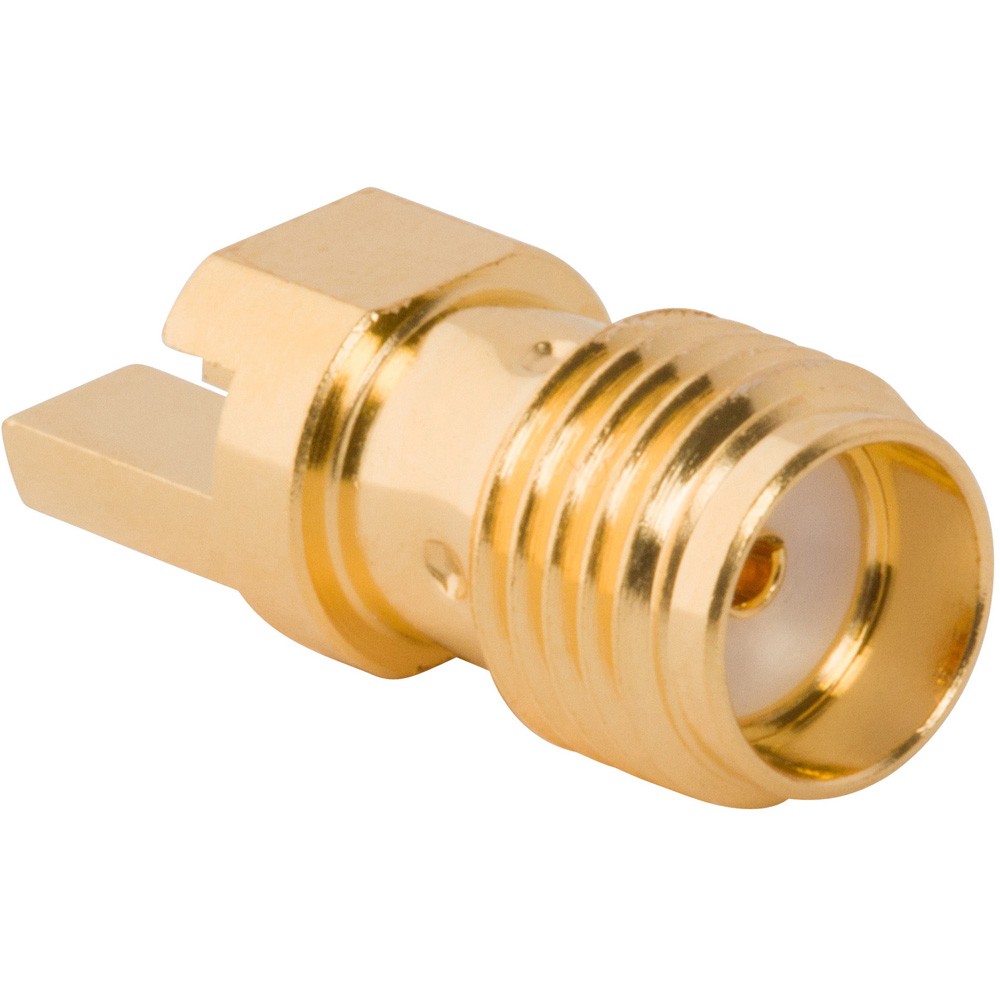

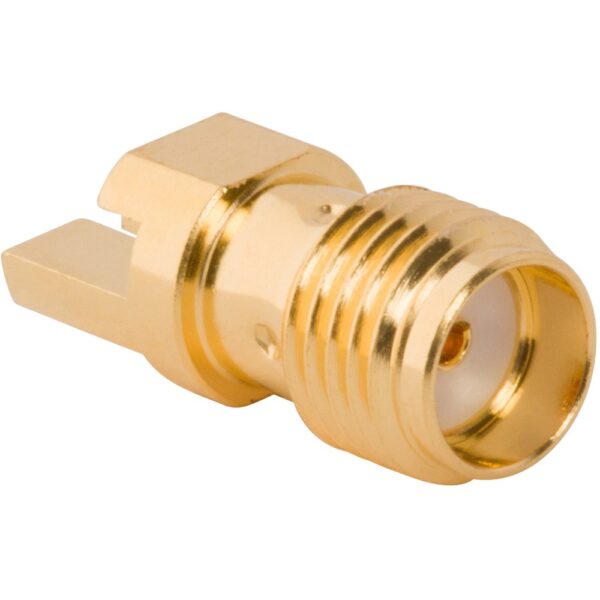

RF Connector SMA PCB End Launch Jack 50 Ohm 0.085 PCB Round Flange with Flats High Frequency 0.010 Pin
SMA Connectors
901-10511-3
$10.01
SMA PCB End Launch Jack 50 Ohm 0.085-inch Conformable PCB Round Flange with Flats High Frequency 0.010 Pin
| Weight | 0.00138 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | Not Applicable |
| Cable Type | Not Applicable |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 26.5 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | PCB – End Launch |
| PCB Thickness (Max) | 0.062 Inches (1.57 mm) |
