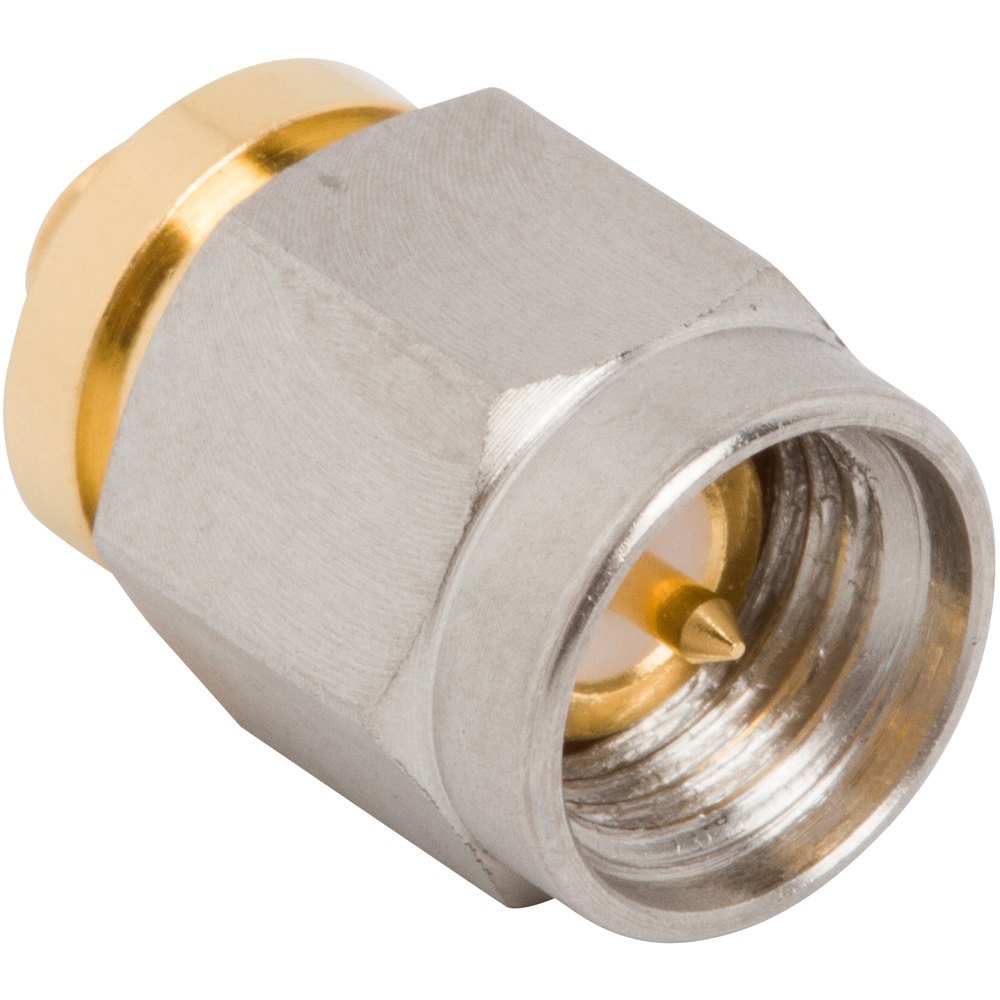

RF Connector SMA Straight Solder Plug 0.085-inch Conformable, 0.086-inch Conformable, RG-405
50 Ohm High Frequency
SMA Connectors
901-10708
$6.04
SMA Straight Solder Plug 0.085-inch Conformable 0.086-inch Conformable RG-405 50 Ohm High Frequency
| Weight | 0.0029 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Gold/Passivated |
| Body Material | Brass |
| Cable Group | SR1 |
| Cable Type | 0.085-inch Conformable, 0.085-inch Semi-Rigid, 0.086-inch Conformable, 0.086-inch Semi-Rigid, Belden 1671A, RG-405, Times Tflex 405 |
| Impedance (Ohms) | 50 |
| Insulator Material | TPX |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 34 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Orientation | Straight |
| Contact Termination | Solder |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Solder |
