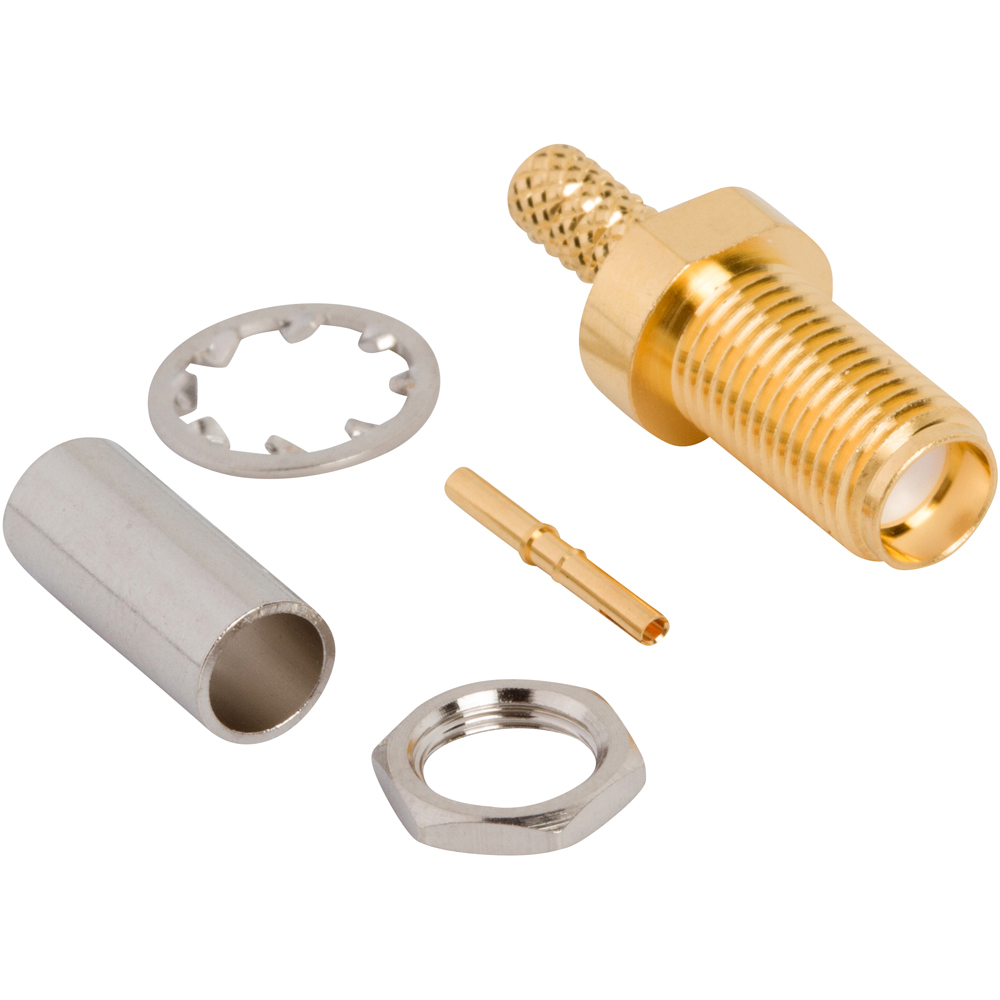

RF Connector SMA Straight Crimp Jack DACAR 302 RTK 031 TFC 302LL Rear Bulkhead 50 Ohm
| Weight | 0.00431 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | Auto-59 |
| Cable Type | DACAR 302, RTK 031, TFC 302 LL |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Bulkhead – Rear Mount |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 20 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Crimp |
