Name: 901-10746
SKU: 901-10746
Price: 8.54 USD
Availability: InStock

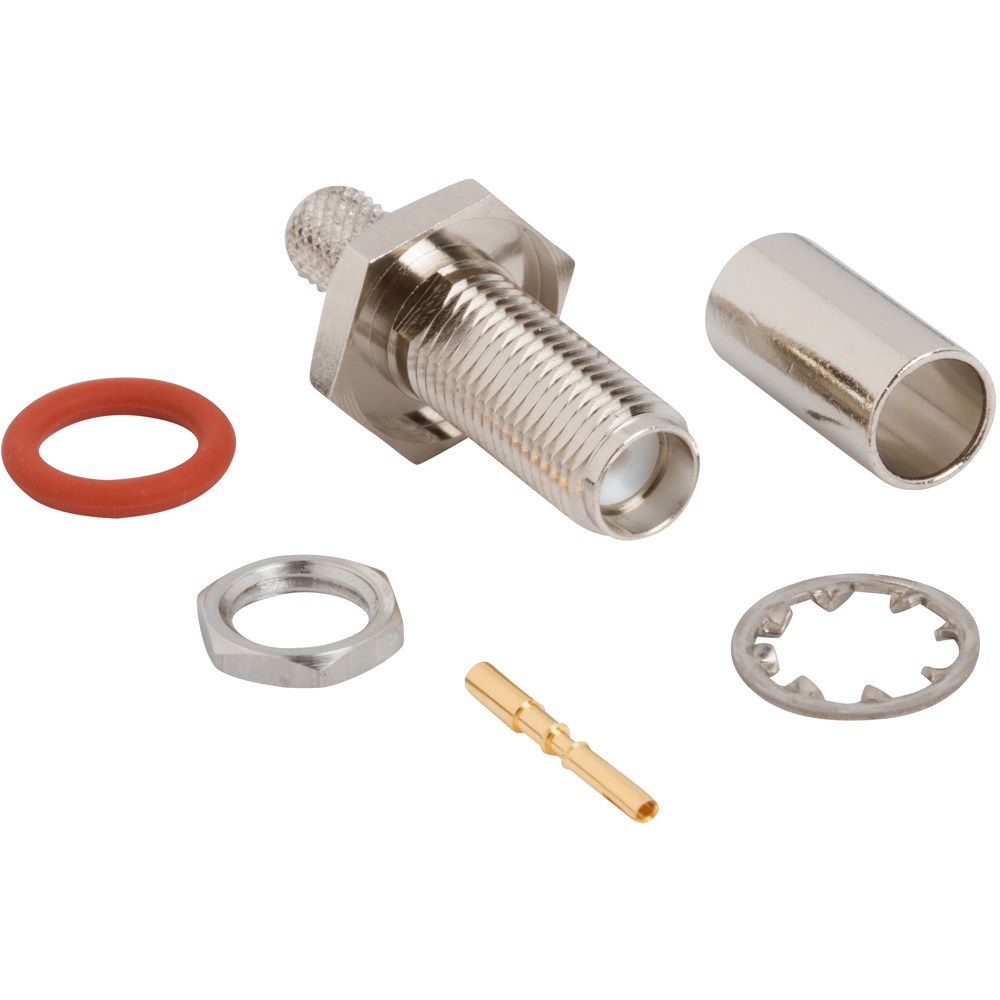

SMA Straight Crimp Jack RG-58 RG-141 Times LMR-195 Bulkhead 50 Ohm IP67

Weight	0.0052 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	C
Cable Type	Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311, RG-141, RG-58, Times LMR-195, Times LMR-200-LLPL
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	IP67
Gender	Jack
Panel Mounting Feature	Bulkhead – Rear Mount
Isolated	No
Low PIM	No
Frequency (Max GHz)	6
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Termination	Solder
Coupling Mechanism	Threaded
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
