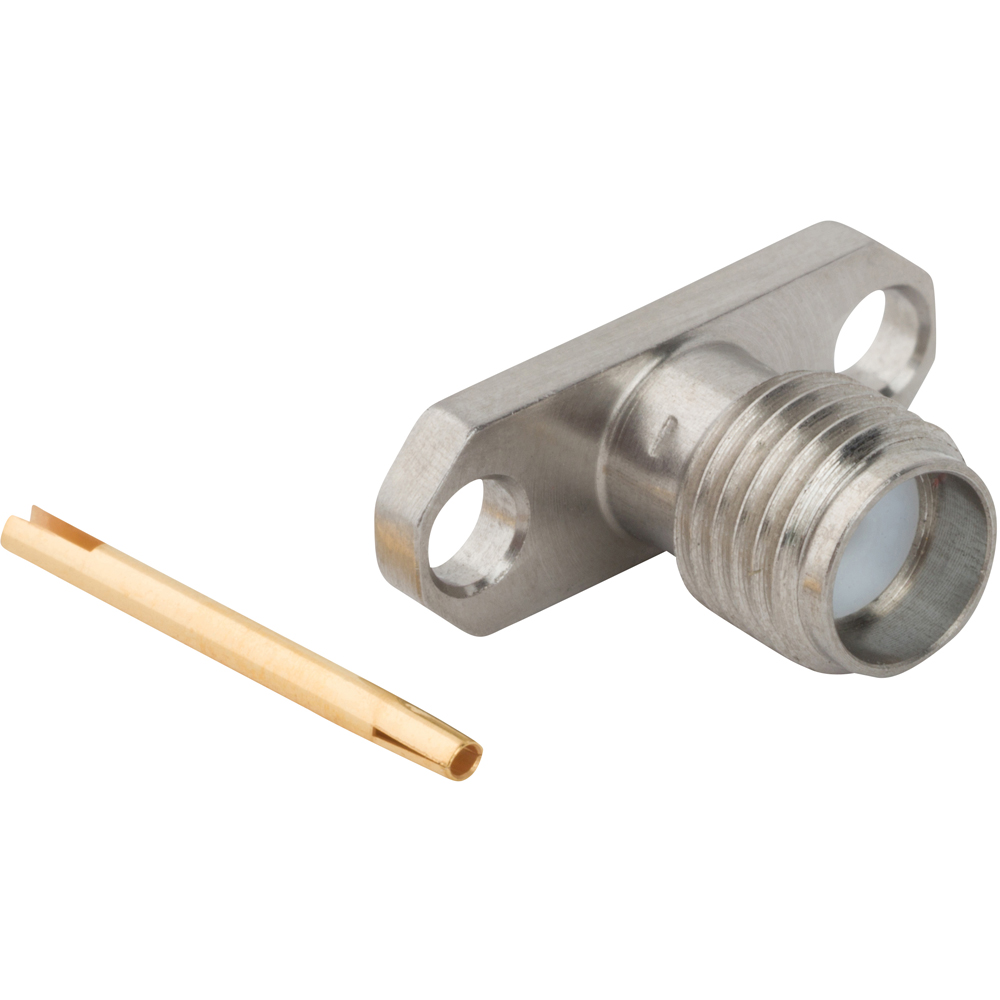

RF Connector SMA Panel Mount Jack 2-Hole Flange Stripline 50 Ohm
| Weight | 0.0227 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Cable Group | Not Applicable |
| Cable Type | Not Applicable |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | 2-Hole Flange |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 12.4 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 100 |
| Termination Style | Round Post |
| Post Length | 0.059 Inches (1.50 mm) |
| Extended Dielectric Length | 0.025 Inches (0.64 mm) |
