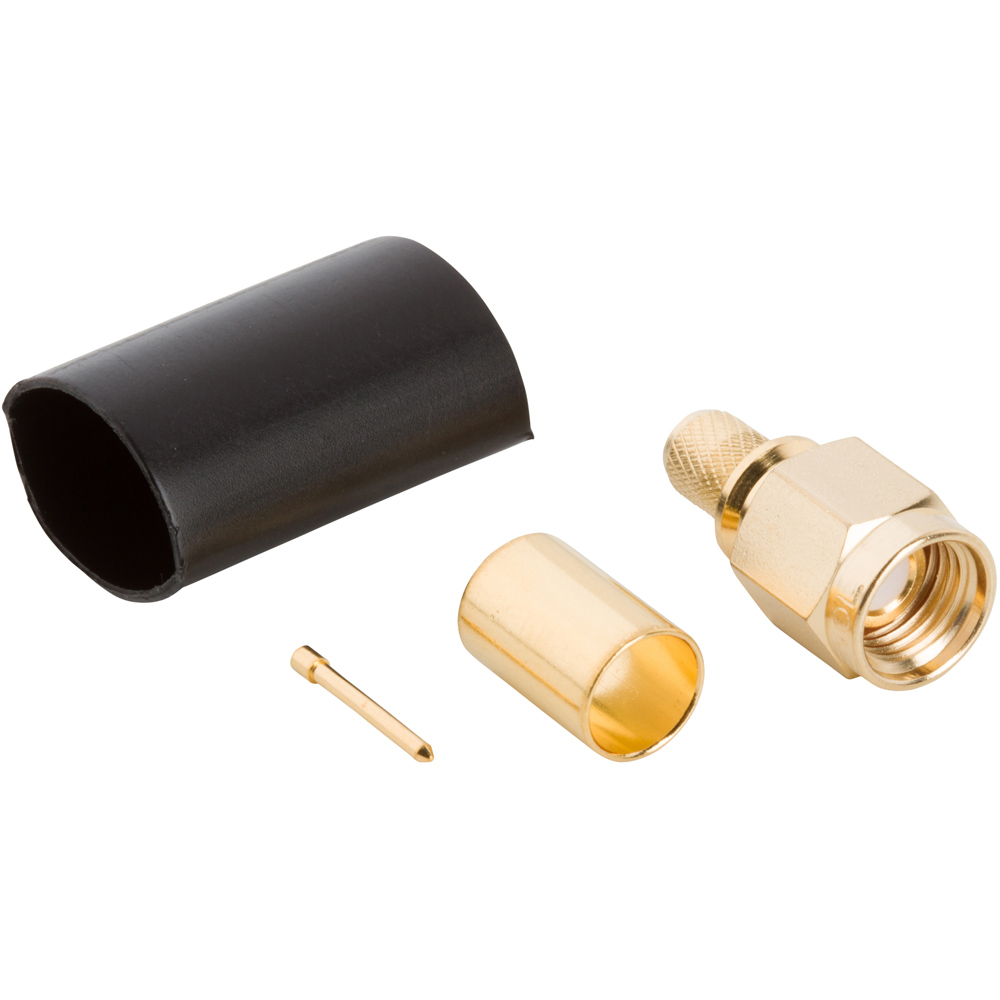

RF Connector SMA Straight Crimp Plug RG-55 RG-142 RG-223 RG-400 50 Ohm
SMA Connectors
901-9511-1
$12.74
SMA Straight Crimp Plug RG-55 RG-142 RG-223 RG-400 50 Ohm
Availability: Out of stock
| Weight | 0.00363 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Cable Group | C1 |
| Cable Type | Belden 83242, RG-142, RG-223, RG-400, RG-55, Times SF-142B |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 12.4 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 100 |
| Termination Style | Cable – Crimp |
| Assembly Tool | CTL-3 |
