Name: 901-9531-3
SKU: 901-9531-3
Price: 18.43 USD
Availability: InStock

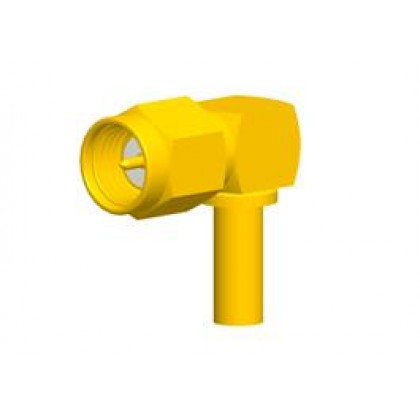

RF Connector SMA Right Angle Crimp Plug RG-174 RG-188 RG-316 Times LMR-100A 50 Ohm

Manufacturer	Amphenol RF
Body Finish	Gold/Passivated
Body Material	Stainless Steel
Cable Group	B
Cable Type	Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Leoni DACAR 462, Leoni DACAR 462-2, RG-174, RG-188, RG-316, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Times LMR-100A, Times RG-174LL
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Operating Level	Commercial
Isolated	No
Low PIM	No
Frequency (Max GHz)	12.4
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Orientation	Right Angle
Contact Termination	Solder
Coupling Mechanism	Threaded
Mating Cycles (Min)	100
Termination Style	Cable – Crimp
Assembly Tool	CTL-2

Reviews

There are no reviews yet.

Be the first to review “901-9531-3”

Quantity	1 - 9	10 - 24	25 - 49	50 - 99	100 - 249	250 - 499	500 - 999	1000
Price	$18.43	$17.86	$17.33	$16.81	$16.33	$16.03	$12.85	$11.58
