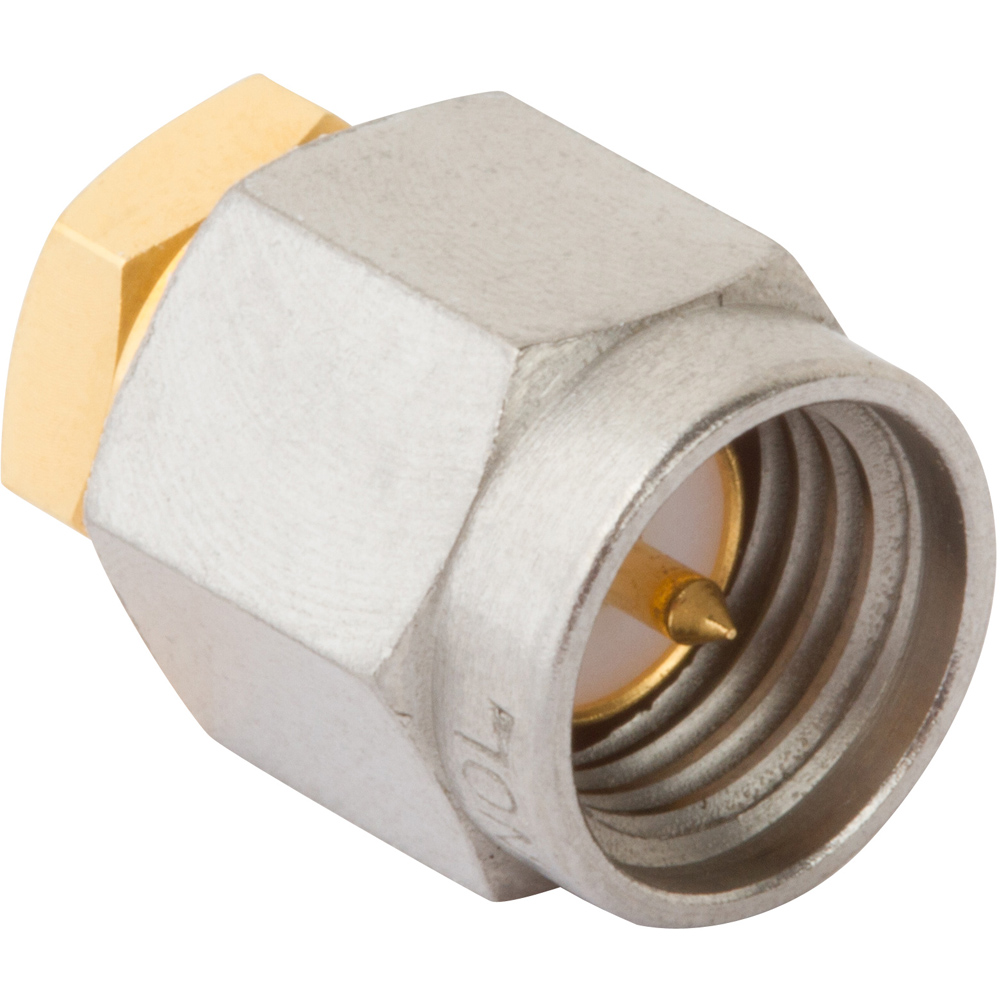

RF Connector SMA Straight Solder Plug RG-402 0.141-inch Conformable Times TFlex 402 50 Ohm Anti Torque Body
SMA Connectors
901-9808-T
$8.12
SMA Straight Solder Plug RG-402 0.141-inch Conformable Times TFlex 402 50 Ohm Anti Torque Body
| Weight | 0.00243 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Gold/Passivated |
| Body Material | Stainless Steel |
| Cable Group | SR2 |
| Cable Type | 0.141-inch Conformable, 0.141-inch Semi-Rigid, Belden 1673A, RG-402, Times Tflex 402 |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 18 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Press-Fit |
| Coupling Mechanism | Threaded |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Solder |
