901-9868-RFX

$5.13

SMA Straight Solder Plug RG-402 0.141-inch Conformable Times Tflex 402 50 Ohm

Quantity	1 - 9	10 - 24	25 - 49	50 - 99	100 - 249	250 - 499	500 - 999	1000
Price	$5.13	$4.96	$4.78	$4.62	$4.47	$4.40	$3.39	$2.99

Summary
901-9868-RFX	$5.13
1x	$5.13

SKU: 901-9868-RFX Category: SMA Connectors

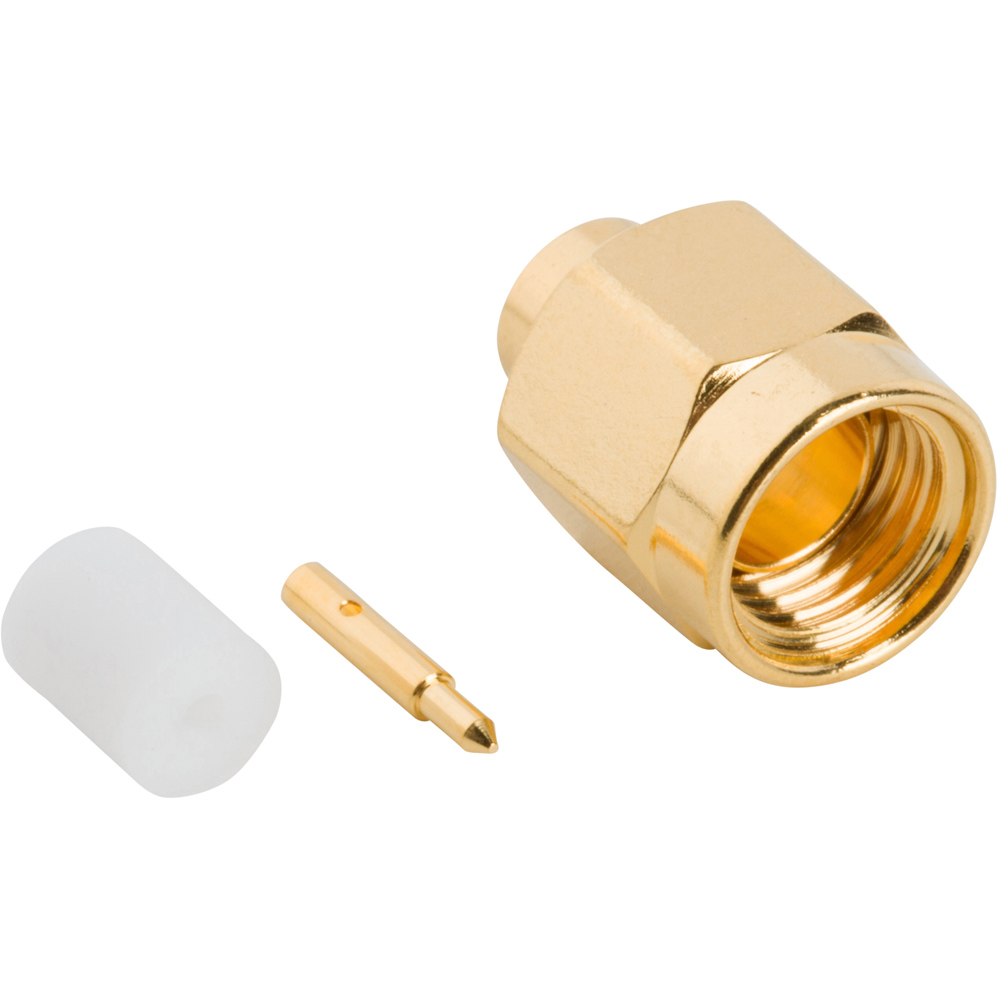

RF Connector SMA Straight Solder Plug RG-402 0.141-inch Conformable Times Tflex 402 50 Ohm

Manufacturer	Amphenol RF
Body Finish	Gold
Body Material	Brass
Cable Group	SR2
Cable Type	0.141-inch Conformable, 0.141-inch Semi-Rigid, Belden 1673A, RG-402, Times Tflex 402
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	No
Frequency (Max GHz)	18
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Solder
Coupling Mechanism	Threaded
Mating Cycles (Min)	100
Termination Style	Cable – Solder
