Name: 902-5039
SKU: 902-5039
Price: 55.99 USD
Availability: InStock

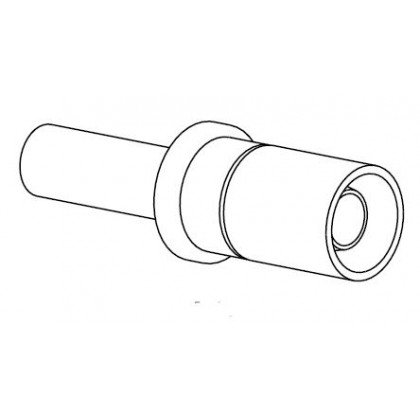

RF Connector Coaxial Insert Straight Crimp Plug RG-174 RG-188 RG-316 Times LMR-100A 50 Ohm

Manufacturer	Amphenol RF
Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	B
Cable Type	Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Leoni DACAR 462, Leoni DACAR 462-2, RG-174, RG-188, RG-316, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Times LMR-100A, Times RG-174LL
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Isolated	No
Low PIM	No
Frequency (Max GHz)	4
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Thread Direction	Standard
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Termination	Solder
Coupling Mechanism	Push-on
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	CTL-2
