903-505J-51S

$9.98

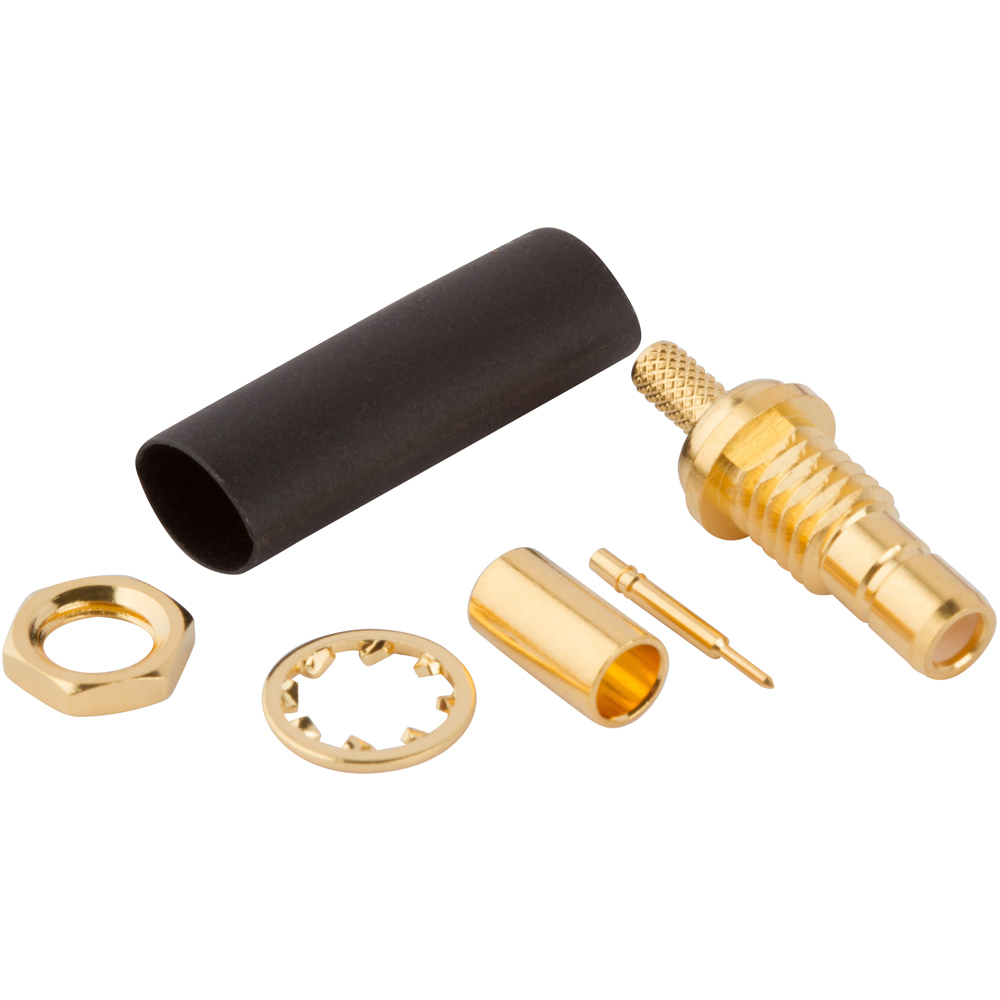

SMB Straight Crimp Jack RG-174 RG-188 RG-316 Times LMR-100A Bulkhead 50 Ohm

Quantity 1 - 9 10 - 24 25 - 49 50 - 99 100 - 249 250 - 499 500 - 999 1000
Price $9.98 $9.67 $9.38 $9.09 $8.84 $8.68 $7.25 $6.46
Summary
903-505J-51S$9.98
$9.98
SKU: 903-505J-51S Category:

RF Connector SMB Straight Crimp Jack RG-174 RG-188 RG-316 Times LMR-100A Bulkhead 50 Ohm

Manufacturer

Amphenol RF

Body Finish

Gold

Body Material

Brass

Cable Group

B

Cable Type

Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Leoni DACAR 462, Leoni DACAR 462-2, RG-174, RG-188, RG-316, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Times LMR-100A, Times RG-174LL

Impedance (Ohms)

50

Insulator Material

PTFE

IP Rating

Not Rated

Gender

Jack

Panel Mounting Feature

Bulkhead – Rear Mount

Isolated

No

Low PIM

No

Temp (Max Degrees Celsius)

165

Temp (Min Degrees Celsius)

-65

Non Magnetic

No

Thread Direction

Standard

Contact Finish

Gold

Contact Material

Brass

Contact Termination

Solder

Coupling Mechanism

Push-on

Mating Cycles (Min)

500

Termination Style

Cable – Crimp
