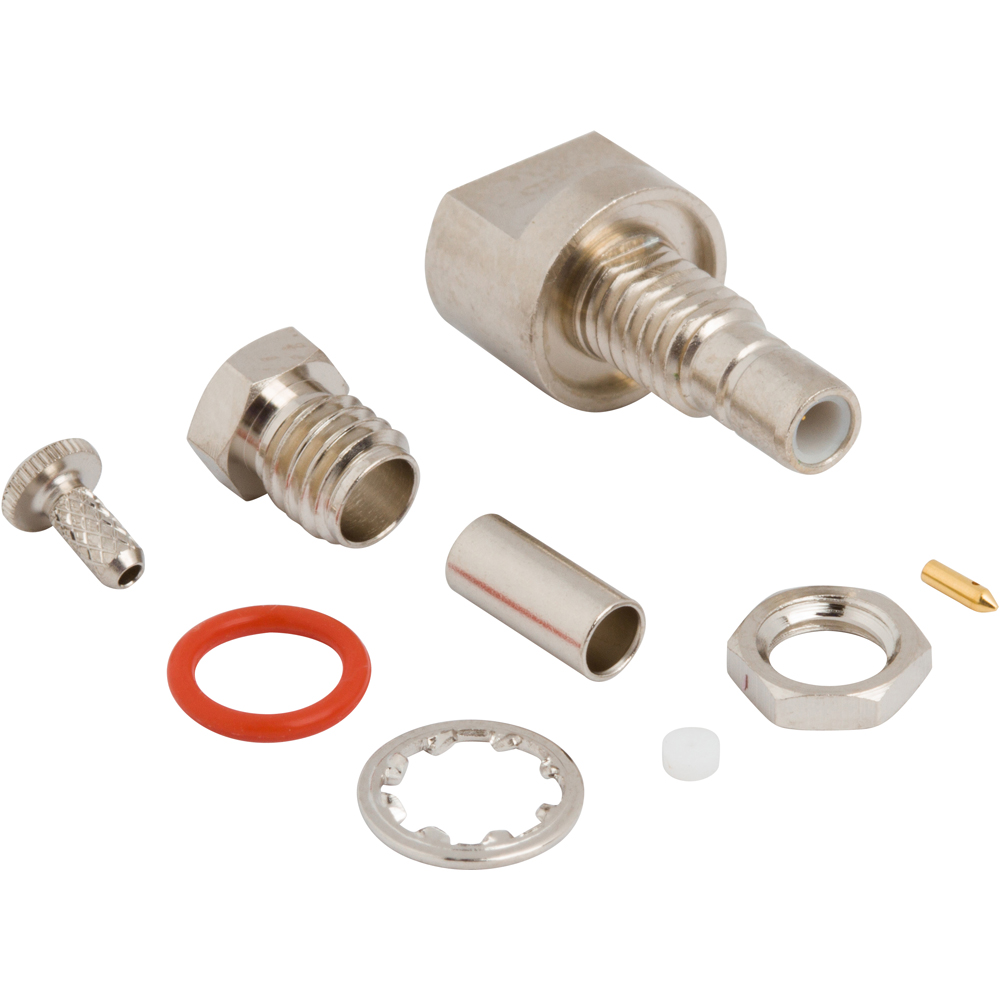

RF Connector SMB Straight Clamp Jack CNX3404 Bulkhead 50 Ohm IP68 50 Ohm
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | SR0 |
| Cable Type | 0.047-inch Conformable, 0.047-inch Semi-Rigid, M17/151 |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | IP68 |
| Gender | Jack |
| Panel Mounting Feature | Bulkhead – Rear Mount |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 2 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Thread Direction | Standard |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder |
| Coupling Mechanism | Push-on |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Clamp |
