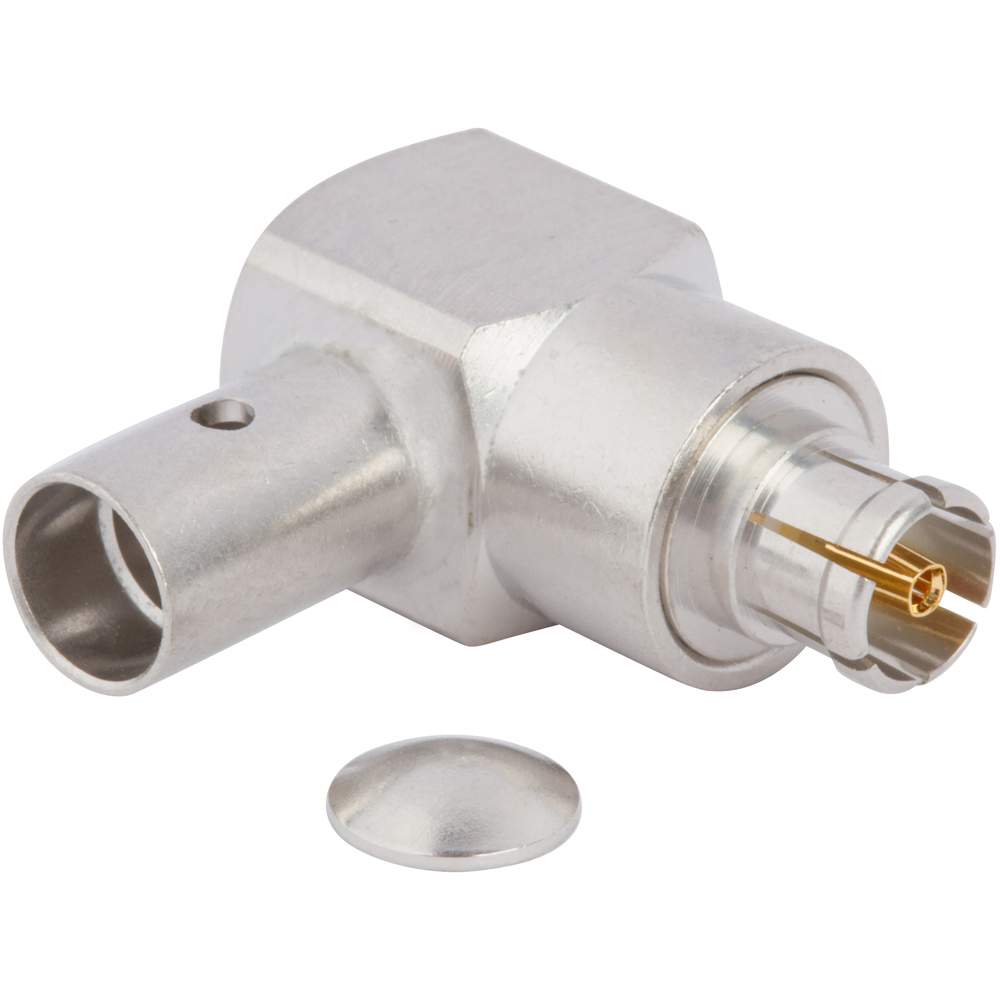

RF Connector PSMP Right Angle Solder Plug 0.141-inch Conformable RG-402 Times Tflex 402 50 Ohm
PSMP Connectors
915-1001
$999.00
PSMP Right Angle Solder Plug 0.141-inch Conformable RG-402 Times Tflex 402 50 Ohm
| Weight | 0.00441 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | White Bronze |
| Body Material | Beryllium Copper |
| Cable Group | SR2 |
| Cable Type | 0.141-inch Conformable, 0.141-inch Semi-Rigid, Belden 1673A, RG-402, Times Tflex 402 |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 2.4 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder |
| Coupling Mechanism | Push-on |
| Mating Cycles (Min) | 100 |
| Termination Style | Cable – Solder |
