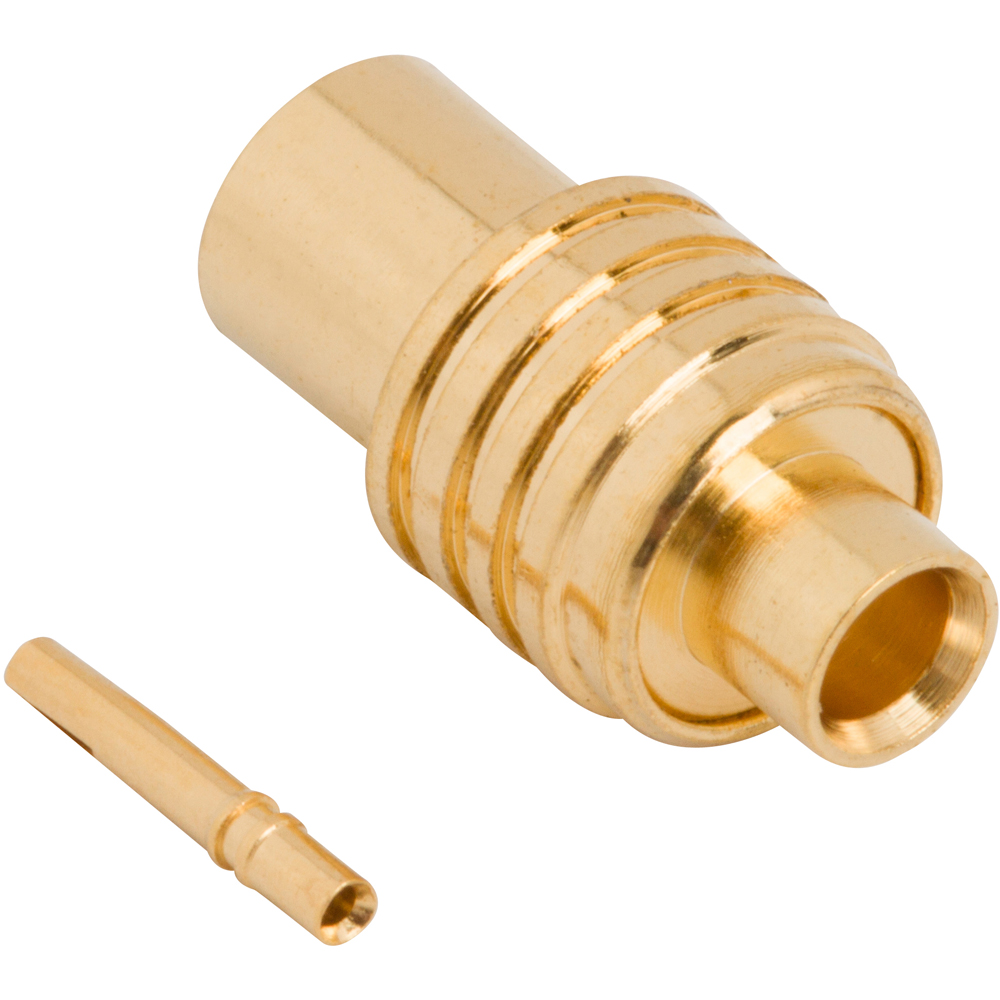

RF Connector MCX Straight Solder Jack 0.085-inch Conformable 0.086-inch Conformable RG-405 50 Ohm
MCX Connectors
919-114J-51SX
$7.34
MCX Straight Solder Jack 0.085-inch Conformable 0.086-inch Conformable RG-405 50 Ohm
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | SR1 |
| Cable Type | 0.085-inch Conformable, 0.085-inch Semi-Rigid, 0.086-inch Conformable, 0.086-inch Semi-Rigid, Belden 1671A, RG-405, Times Tflex 405 |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 6 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder |
| Coupling Mechanism | Push-on |
| Mating Cycles (Min) | 500 |
| Termination Style | Cable – Solder |
