919-388P-51S

$3.42

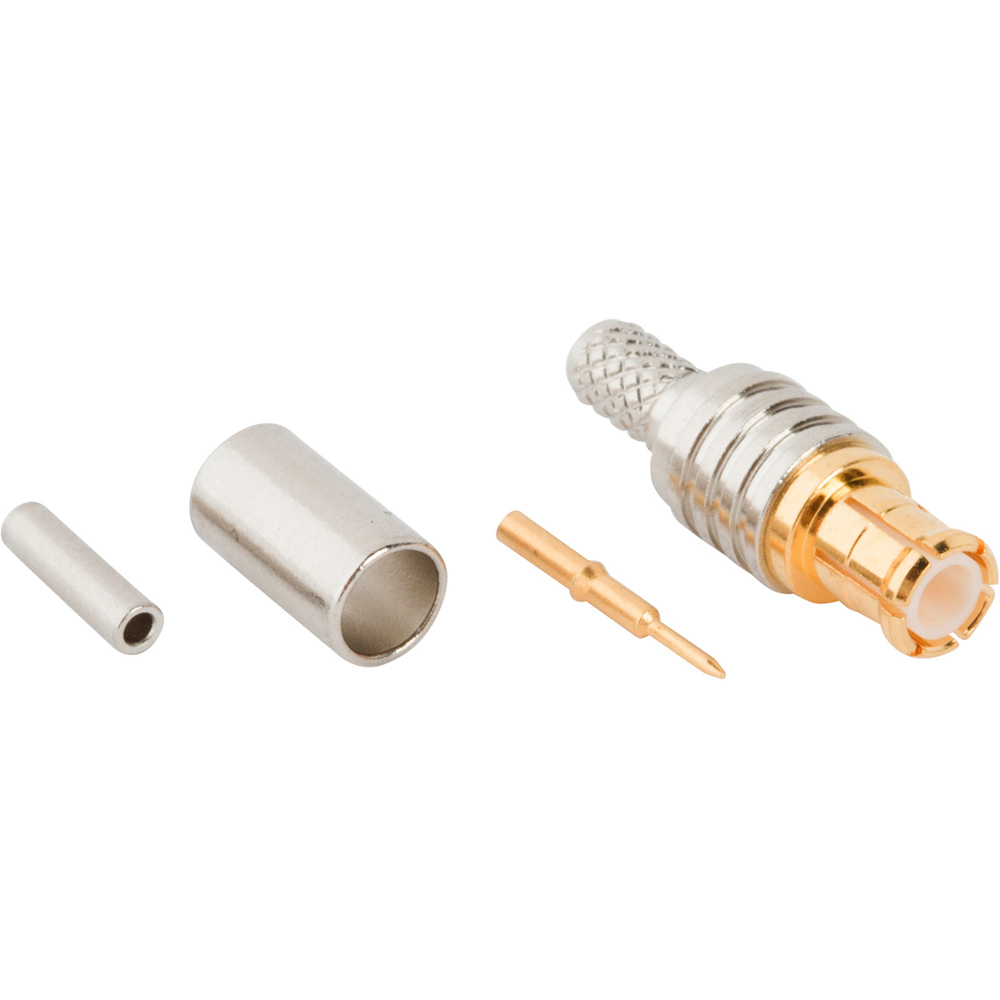

MCX Straight Crimp Plug RG-178 RG-196 50 Ohm

Quantity 100 - 499 500 - 999 1000 - 4999 5000
Price $3.42 $3.21 $2.47 $2.38
Summary
919-388P-51S$3.42
$3.42
SKU: 919-388P-51S Category:

RF Connector MCX Straight Crimp Plug RG-178 RG-196 50 Ohm

Weight 0.00116 kg
Manufacturer

Amphenol RF

Body Finish

Gold/Nickel

Body Material

Brass

Cable Group

A

Cable Type

Belden 83265, RG-178, RG-196

Impedance (Ohms)

50

Insulator Material

PTFE

IP Rating

Not Rated

Gender

Plug

Panel Mounting Feature

Not Applicable

Operating Level

Commercial

Isolated

No

Low PIM

No

Frequency (Max GHz)

6

Temp (Max Degrees Celsius)

165

Temp (Min Degrees Celsius)

-65

Non Magnetic

No

Contact Finish

Gold

Contact Material

Brass

Contact Termination

Crimp

Coupling Mechanism

Push-on

Mating Cycles (Min)

500

Termination Style

Cable – Crimp
