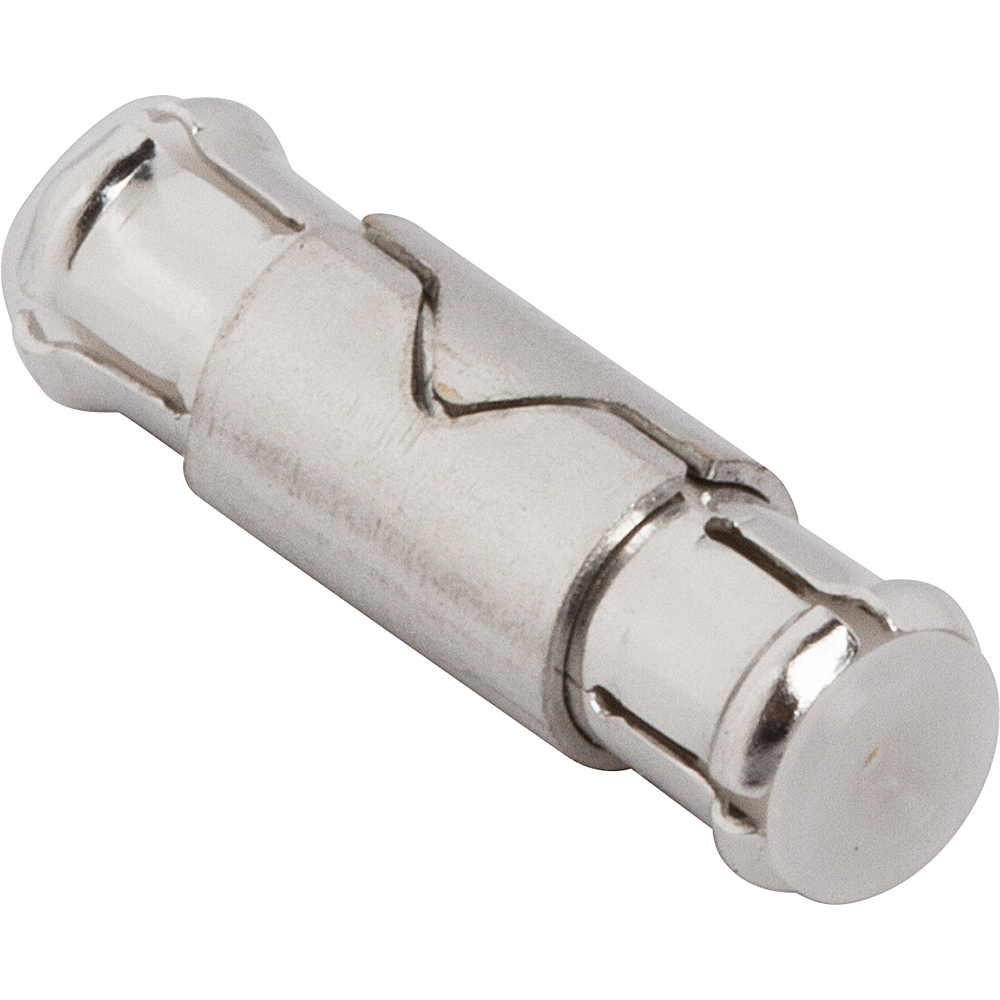

Bullet Adapter HD-EFI Plug to HD-EFI Plug 50 Ohm Straight 18.28mm
HD-EFI to HD-EFI Adapters
920-517A-52S
$6.24
Bullet Adapter HD-EFI Plug to HD-EFI Plug 50 Ohm Straight 18.28mm
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | White Bronze |
| Body Material | Beryllium Copper |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Performance |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 6 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Adapter Side 1 Series | HD-EFI |
| Adapter Side 1 Style | Plug |
| Adapter Side 2 Series | HD-EFI |
| Adapter Side 2 Style | Plug |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
