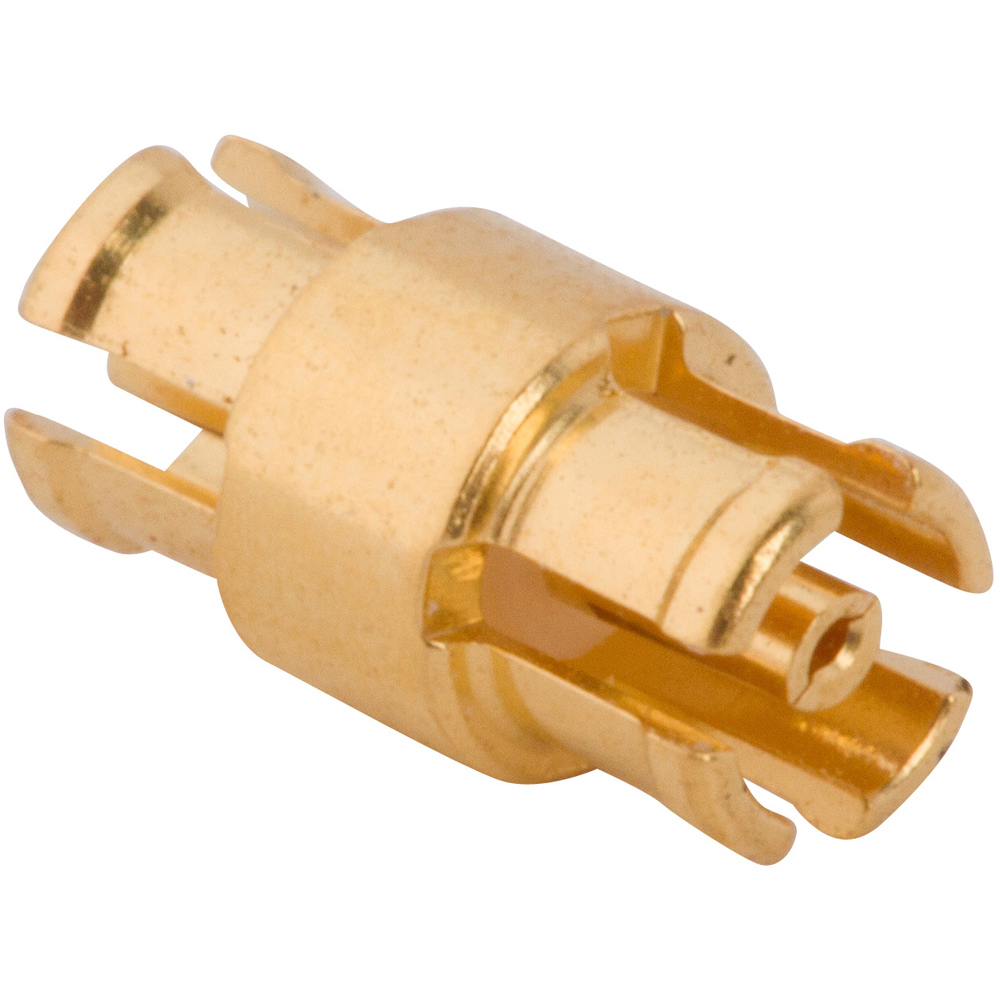

Bullet Adapter SMPM Plug to SMPM Plug 50 Ohm Straight 5.33mm
SMPM to SMPM Adapters
925-106A-51S
$14.21
Bullet Adapter SMPM Plug to SMPM Plug 50 Ohm Straight 5.33mm
| Weight | 0.00008 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Performance |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 40 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Adapter Side 1 Series | SMPM |
| Adapter Side 1 Style | Plug |
| Adapter Side 2 Series | SMPM |
| Adapter Side 2 Style | Plug |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
