925-123C-51A

$6.31

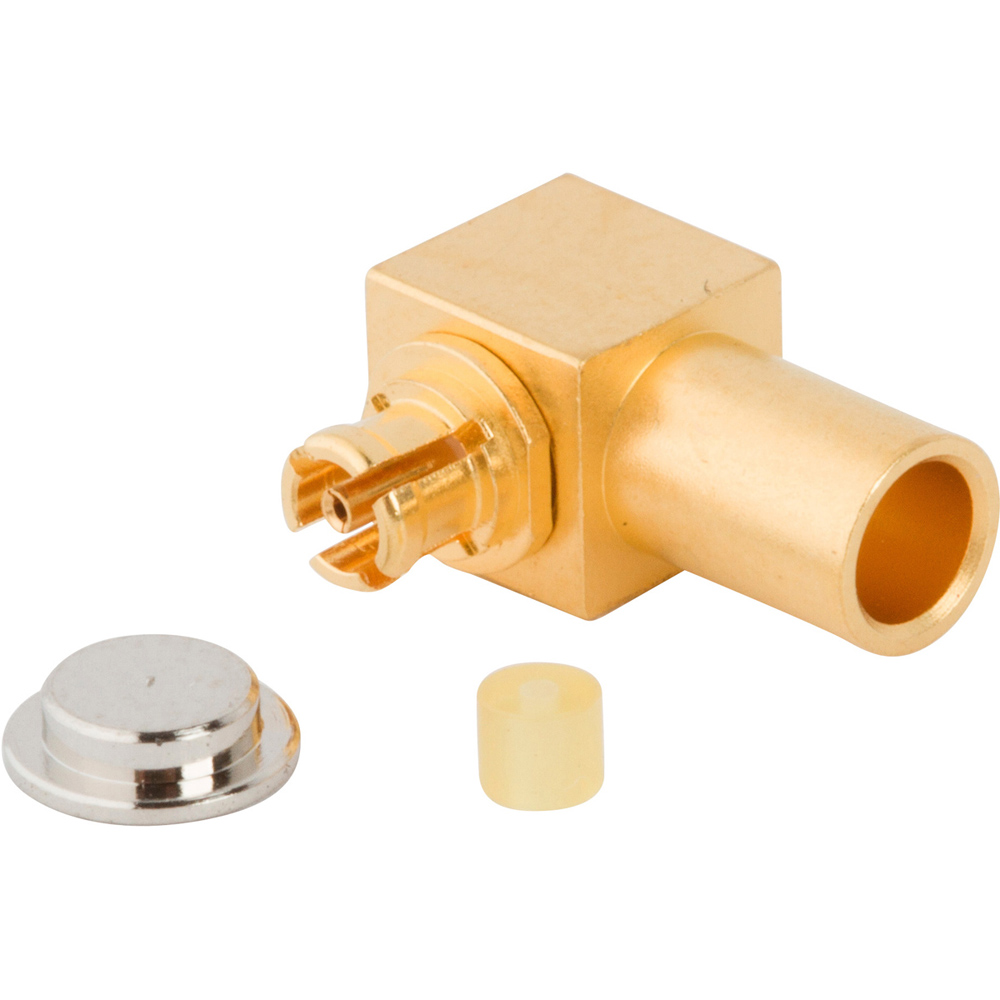

SMPM Right Angle Solder Plug 0.085-inch Conformable 0.086-inch Conformable RG-405 50 Ohm

Quantity	100 - 249	250 - 499	500 - 999	1000
Price	$6.31	$5.53	$5.30	$4.58

Summary
925-123C-51A	$6.31
1x	$6.31

SKU: 925-123C-51A Category: SMPM Connectors

RF Connector SMPM Right Angle Solder Plug 0.085-inch Conformable 0.086-inch Conformable RG-405 50 Ohm

Weight	0.00065 kg
Manufacturer	Amphenol RF
Body Finish	Gold
Body Material	Brass
Cable Group	SR1
Cable Type	0.085-inch Conformable, 0.085-inch Semi-Rigid, 0.086-inch Conformable, 0.086-inch Semi-Rigid, Belden 1671A, RG-405, Times Tflex 405
Impedance (Ohms)	50
Insulator Material	PTFE
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Operating Level	Performance
Isolated	No
Low PIM	No
Frequency (Max GHz)	26.5
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Non Magnetic	No
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Termination	Solder
Coupling Mechanism	Push-on
Mating Cycles (Min)	100
Termination Style	Cable – Solder
