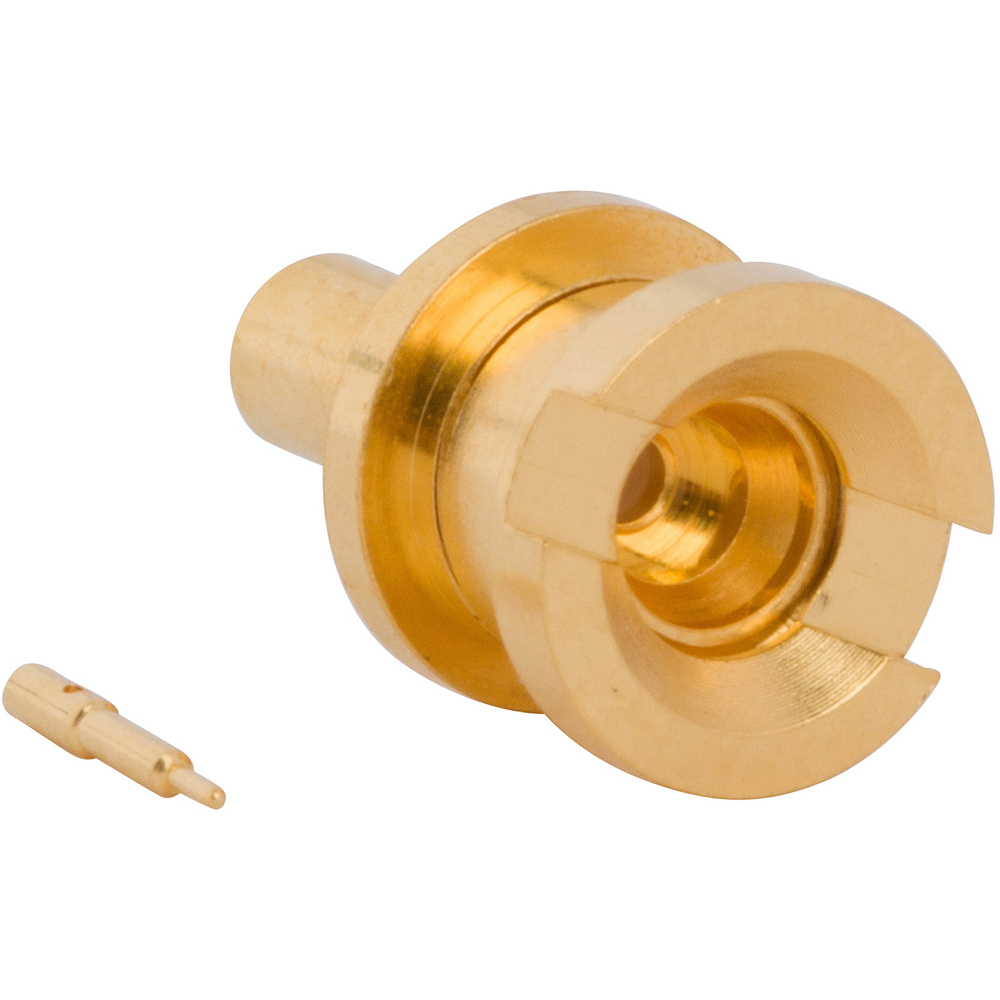

RF Connector SMPM Straight Full Detent Solder Jack 0.047-inch Conformable Bulkhead Rear Mount 50 Ohm
SMPM Connectors
925-134J-51S
$999.00
SMPM Straight Full Detent Solder Jack 0.047-inch Conformable Bulkhead Rear Mount 50 Ohm
| Weight | 0.00099 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | SR0 |
| Cable Type | 0.047-inch Conformable, 0.047-inch Semi-Rigid, M17/151 |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Bulkhead – Rear Mount |
| Operating Level | Performance |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 40 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder |
| Coupling Mechanism | Push-on |
| Mating Cycles (Min) | 100 |
| Termination Style | Cable – Solder |
| Detent Type | Full Detent |
