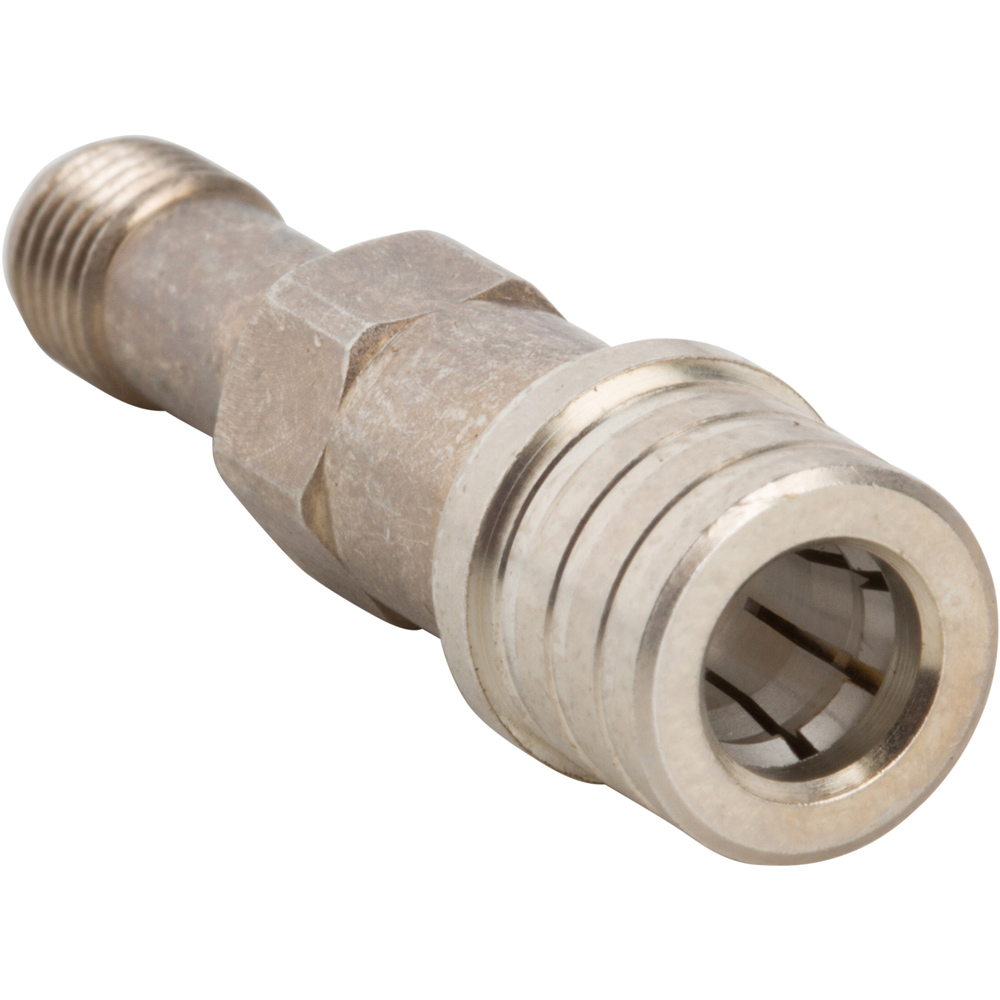

QMA Plug to SMA Jack Adapter 50 Ohm Straight
QMA to SMA Adapters, SMA to QMA Adapters
930-101A-51S
$53.95
QMA Plug to SMA Jack Adapter 50 Ohm Straight
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 6 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Adapter Side 1 Series | QMA |
| Adapter Side 1 Style | Plug |
| Adapter Side 2 Series | SMA |
| Adapter Side 2 Style | Jack |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
