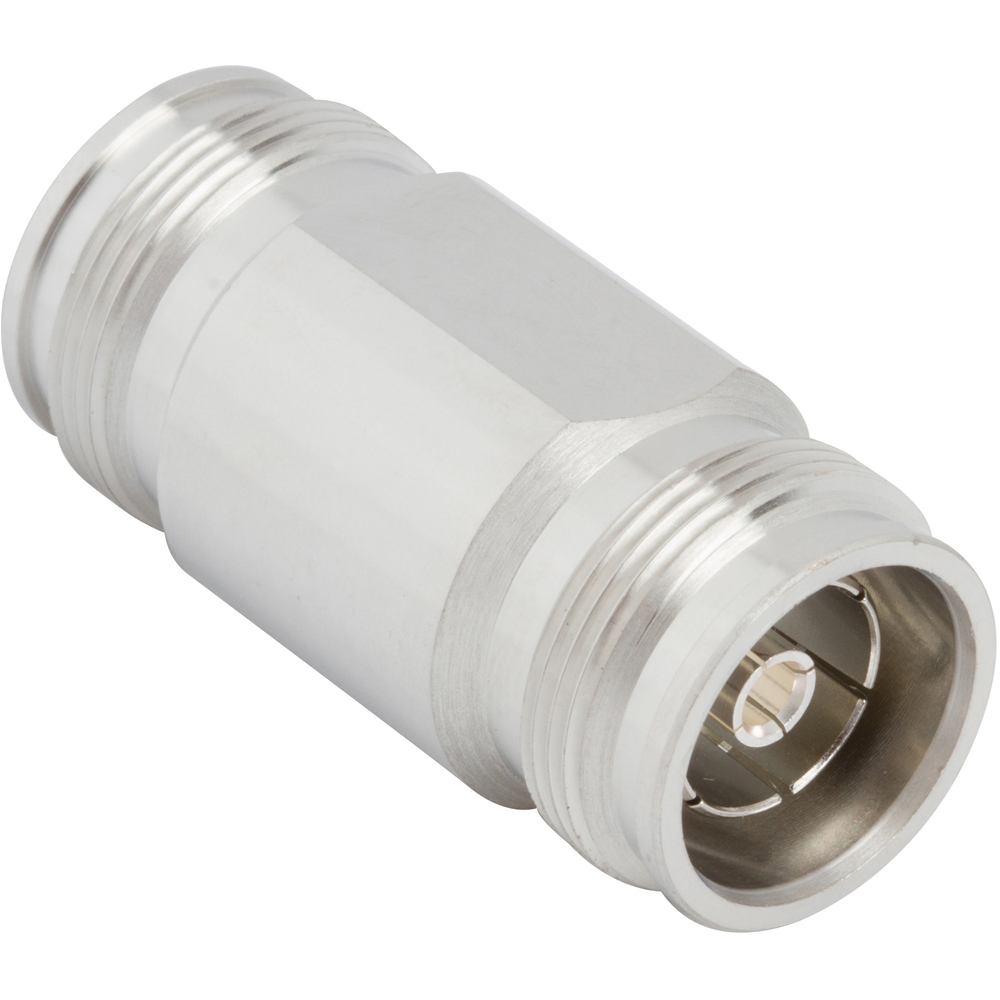

4.3/10 Jack to 4.3/10 Jack Adapter 50 Ohm Straight
| Weight | 0.0635 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | White Bronze |
| Body Material | Brass |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Performance |
| Isolated | No |
| Low PIM | Yes |
| Frequency (Max GHz) | 6 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Adapter Side 1 Series | 4.3-10 |
| Adapter Side 1 Style | Jack |
| Adapter Side 2 Series | 4.3-10 |
| Adapter Side 2 Style | Jack |
| Contact Finish | Silver |
| Contact Material | Beryllium Copper |
