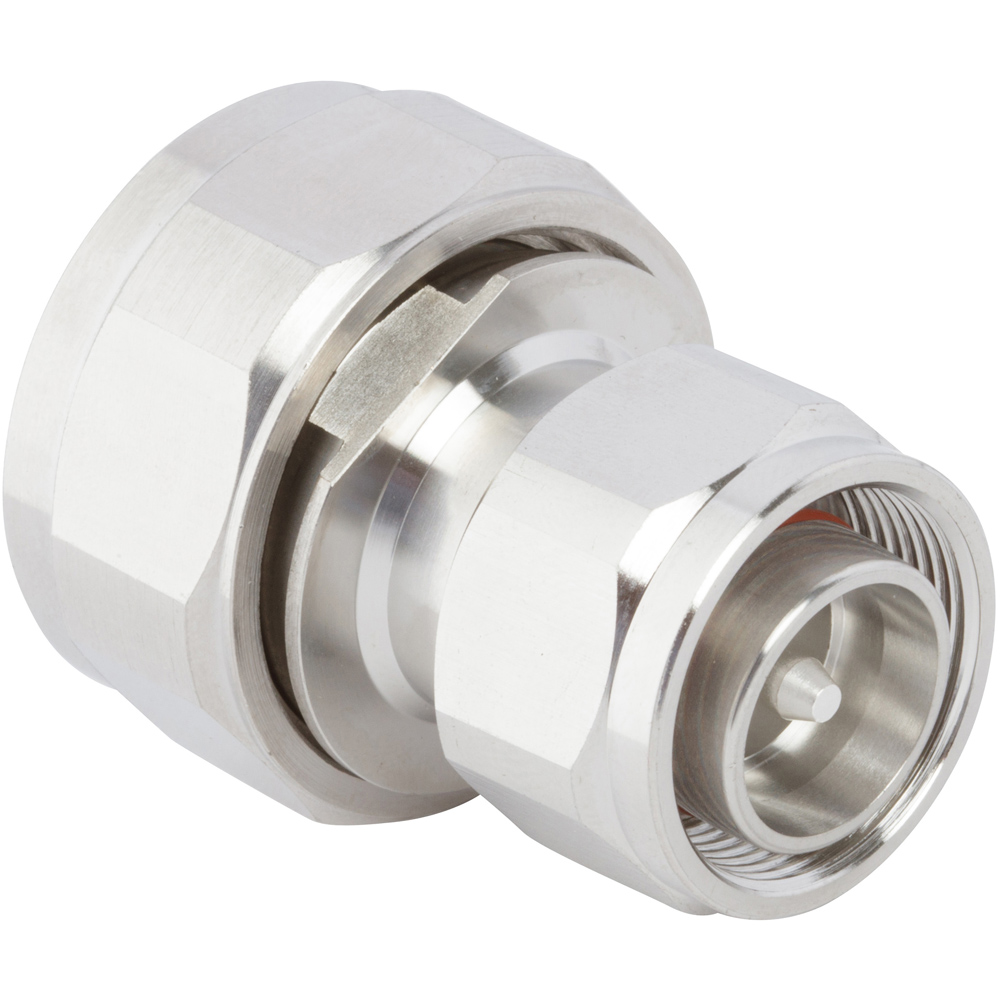

4.3/10 Plug to 7/16 Plug Adapter 50 Ohm Straight
4.3-10 to 7-16 Adapters, 7-16 to 4.3-10 Adapters
AD-716P4310P-1
$46.37
4.3-10 Plug to 7-16 Plug Adapter 50 Ohm Straight
| Weight | 0.11157 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | White Bronze |
| Body Material | Brass |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Performance |
| Isolated | No |
| Low PIM | Yes |
| Frequency (Max GHz) | 6 |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Adapter Side 1 Series | 4.3-10 |
| Adapter Side 1 Style | Plug |
| Adapter Side 2 Series | 16-Jul |
| Adapter Side 2 Style | Plug |
| Contact Finish | Silver |
| Contact Material | Brass |
