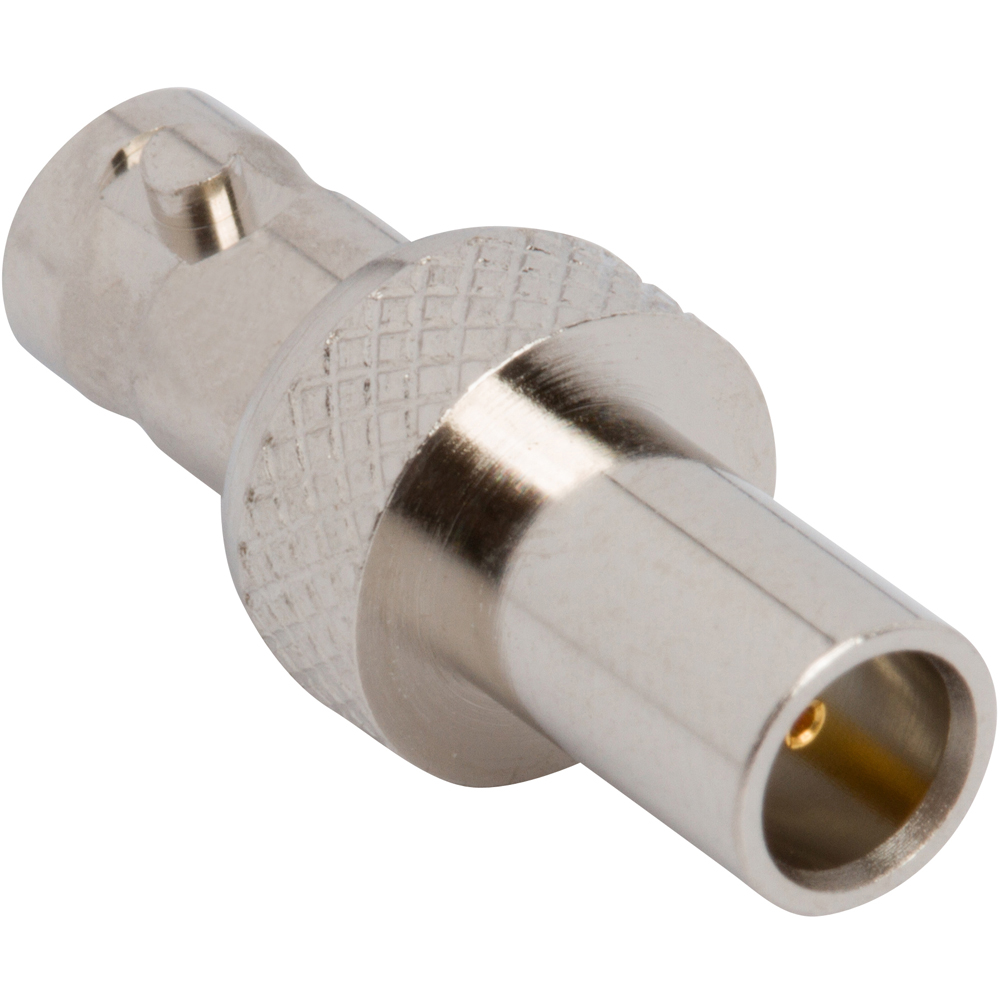

HD-BNC Jack to MCX Jack Adapter 75 Ohm Straight
HD-BNC to MCX Adapters, MCX to HD-BNC Adapters
AD-HDBNJMCJ-12G
$36.16
HD-BNC Jack to MCX Jack Adapter 75 Ohm Straight
| Weight | 0.00186 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Nickel |
| Body Material | Brass |
| Impedance (Ohms) | 75 |
| Insulator Material | PTFE |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Adapter Side 1 Series | HD-BNC |
| Adapter Side 1 Style | Jack |
| Adapter Side 2 Series | MCX |
| Adapter Side 2 Style | Jack |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Orientation | Straight |
