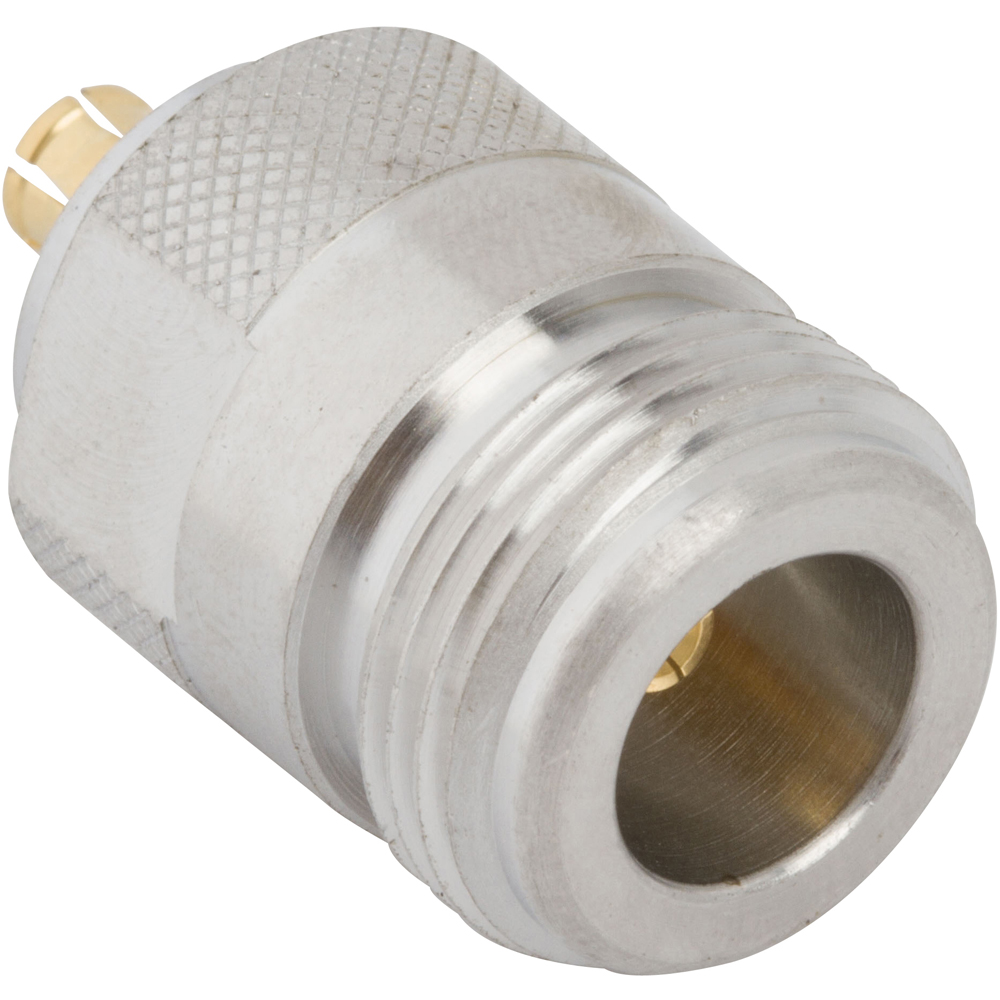

N-Type Jack to PSMP Plug Adapter 50 Ohm Straight
N-Type to PSMP Adapters, PSMP to N-Type Adapters
AD-NJ-PSMPJ-1
$58.78
N-Type Jack to PSMP Plug Adapter 50 Ohm Straight
| Weight | 0.02561 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Gold/White Bronze |
| Body Material | Brass/Beryllium Copper |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Performance |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 10 |
| Temp (Max Degrees Celsius) | 155 |
| Temp (Min Degrees Celsius) | -55 |
| Non Magnetic | No |
| Adapter Side 1 Series | N-Type |
| Adapter Side 1 Style | Jack |
| Adapter Side 2 Series | PSMP |
| Adapter Side 2 Style | Plug |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
