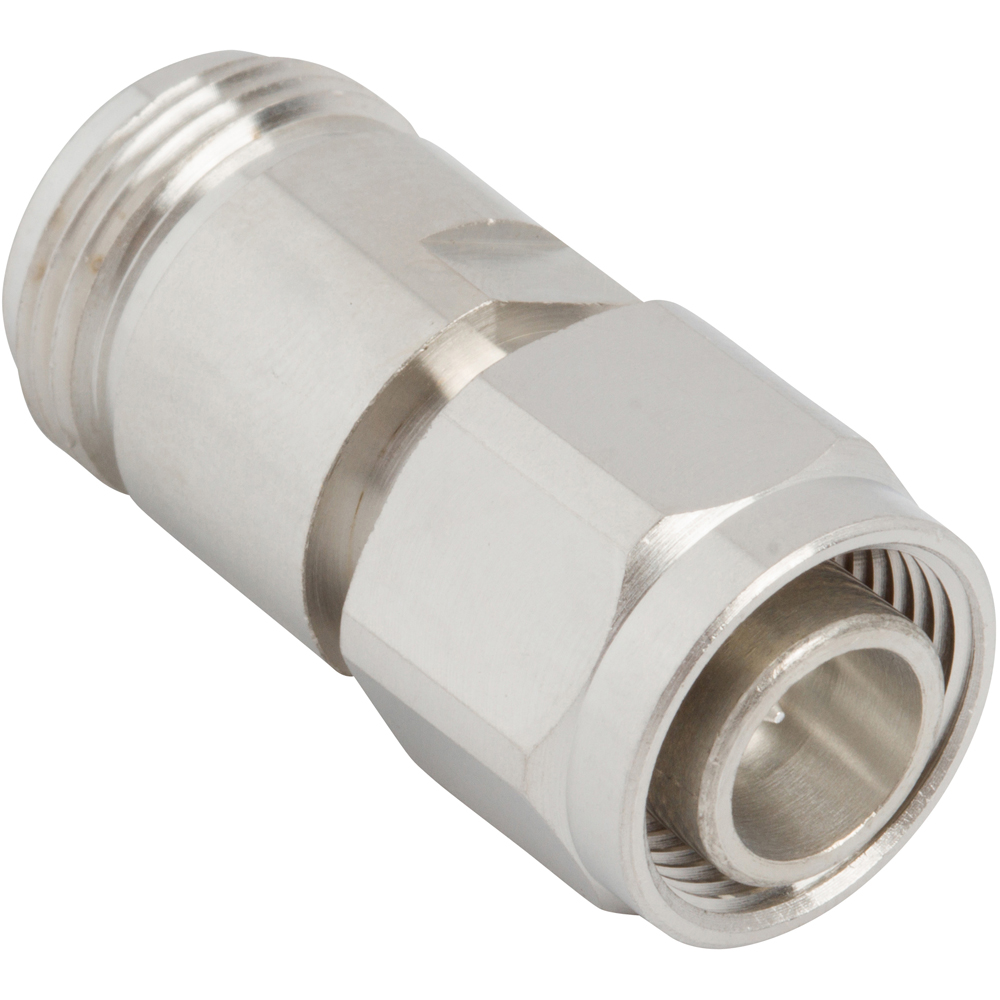

N-Type Jack to 2.2-5 Plug Adapter 50 Ohm Straight
2.2-5 to N-Type Adapters, N-Type to 2.2-5 Adapters
AD-NJ225P-1
$41.92
N-Type Jack to 2.2-5 Plug Adapter 50 Ohm Straight
| Weight | 0.03767 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | White Bronze |
| Body Material | Brass |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Performance |
| Isolated | No |
| Low PIM | Yes |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Non Magnetic | No |
| Adapter Side 1 Series | 2.2-5 |
| Adapter Side 1 Style | Plug |
| Adapter Side 2 Series | N-Type |
| Adapter Side 2 Style | Jack |
| Contact Finish | Silver |
| Contact Material | Beryllium Copper |
| Orientation | Straight |
