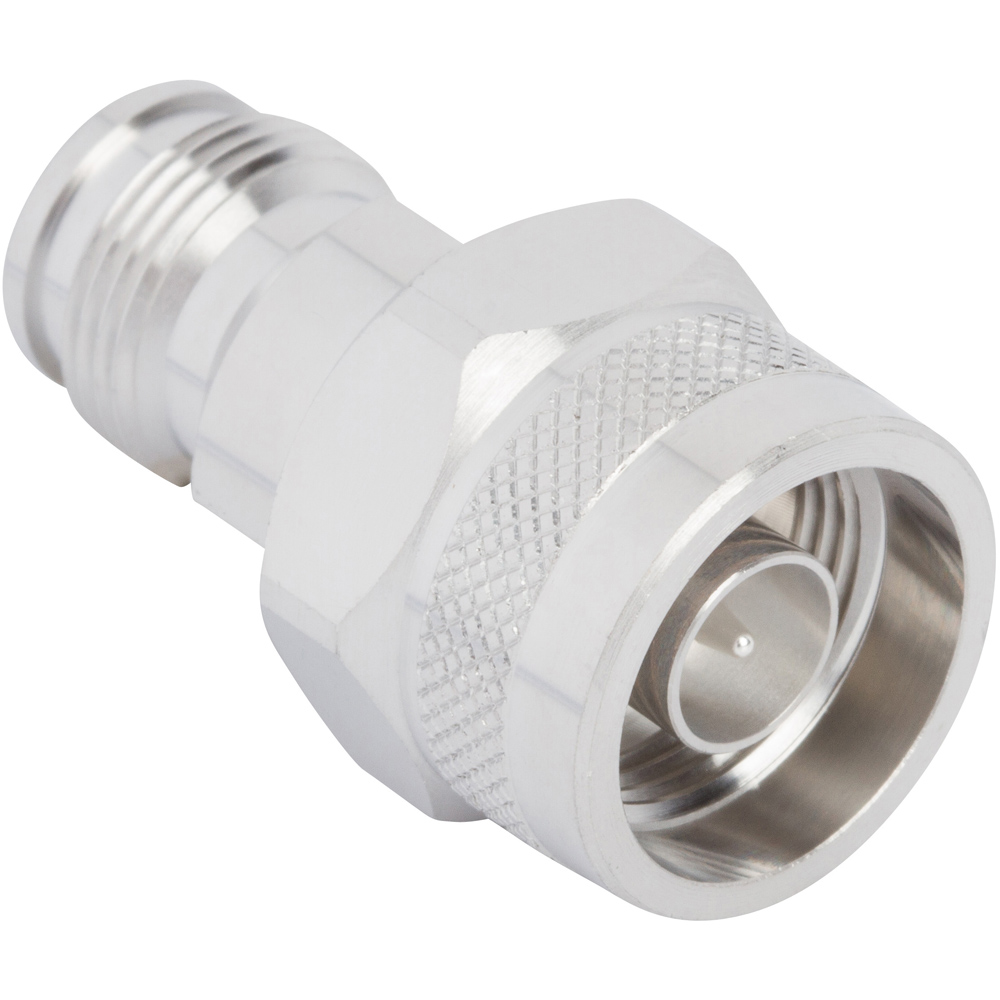

N-Type Plug to 2.2-5 Jack Adapter 50 Ohm Straight
2.2-5 to N-Type Adapters, N-Type to 2.2-5 Adapters
AD-NP225J-1
$36.62
N-Type Plug to 2.2-5 Jack Adapter 50 Ohm Straight
| Weight | 0.04263 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Bright Tin |
| Body Material | Brass |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | Yes |
| Temp (Min Degrees Celsius) | |
| Non Magnetic | No |
| Adapter Side 1 Series | 2.2-5 |
| Adapter Side 1 Style | Jack |
| Adapter Side 2 Series | N-Type |
| Adapter Side 2 Style | Plug |
| Contact Finish | Bright Tin |
| Contact Material | Beryllium Copper |
| Orientation | Straight |
