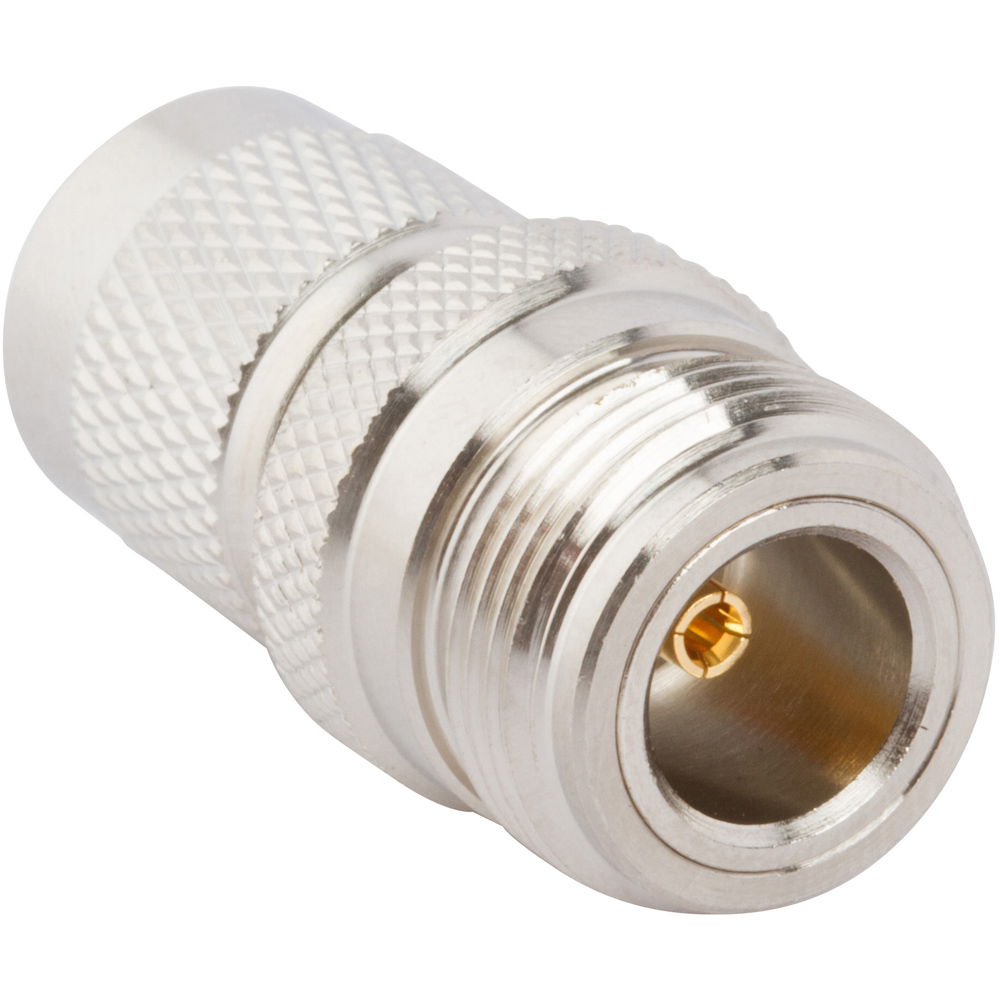

N-Type Jack to TNC Plug Adapter 50 Ohm Straight
N-Type to TNC Adapters, TNC to N-Type Adapters
APH-NJ-TNCP
$999.00
N-Type Jack to TNC Plug Adapter 50 Ohm Straight
| Manufacturer | Amphenol RF |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Panel Mounting Feature | Not Applicable |
| Operating Level | Commercial |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 11 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Adapter Side 1 Series | N-Type |
| Adapter Side 1 Style | Jack |
| Adapter Side 2 Series | TNC |
| Adapter Side 2 Style | Plug |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
