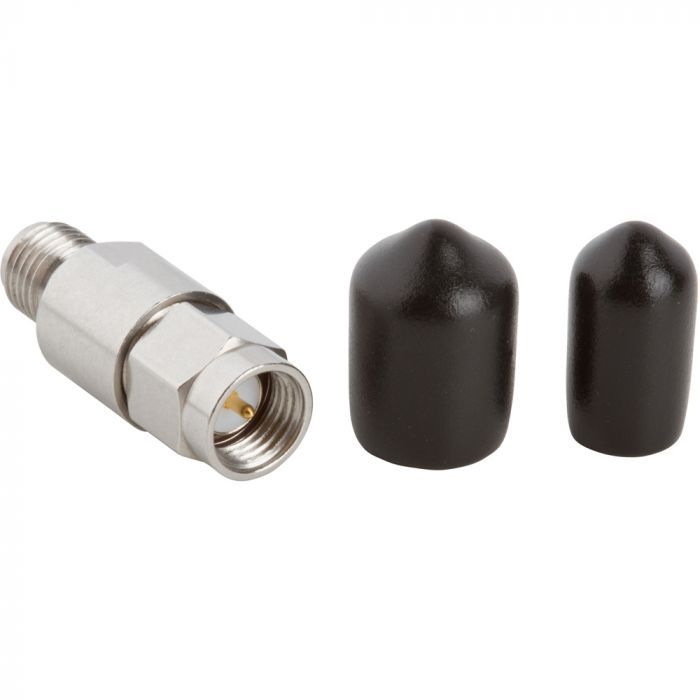

RF Fixed Coaxial Attenuator SMA Jack to SMA Plug 10 dB 2 Watt
| Manufacturer | Amphenol RF |
|---|---|
| Attenuation (dB) | 10 |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| ECCN | EAR99 |
| IP Rating | Not Rated |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Isolated | No |
| Low PIM | No |
| Mil Qualified | Not Mil Qualified |
| Non Magnetic | No |
| Orientation | Straight |
| Panel Mounting Feature | Not Applicable |
| Power (Max Watts) | 2 |
| Temp (Max Degrees Celsius) | 125 |
| Temp (Min Degrees Celsius) | -55 |
