B1121A1-ND3G-1-50

Name: B1121A1-ND3G-1-50
SKU: B1121A1-ND3G-1-50
Price: 999.00 USD
Availability: InStock

$999.00

BNC Straight Crimp Plug RG-58 RG-141 Times LMR-195 50 Ohm

SKU: B1121A1-ND3G-1-50 Category: BNC Connectors

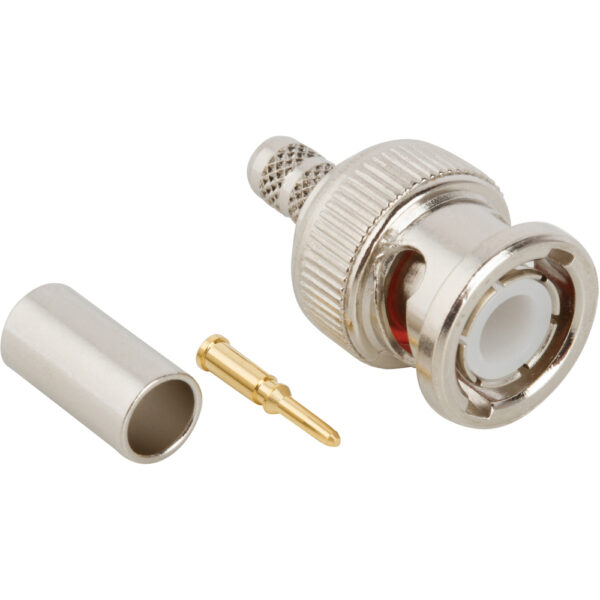

RF Connector BNC Straight Crimp Plug RG-58 RG-141 Times LMR-195 50 Ohm

Weight	0.0099 kg
Manufacturer	Amphenol RF
Body Finish	Nickel
Body Material	Brass
Cable Group	C
Cable Type	Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311, RG-141, RG-58, Times LMR-195, Times LMR-200-LLPL
Impedance (Ohms)	50
Insulator Material	Delrin
IP Rating	Not Rated
Gender	Plug
Panel Mounting Feature	Not Applicable
Operating Level	Commercial
Isolated	No
Low PIM	No
Frequency (Max GHz)	4
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	-40
Non Magnetic	No
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Crimp
Coupling Mechanism	Bayonet
Mating Cycles (Min)	500
Termination Style	Cable – Crimp
Assembly Tool	47-10070
