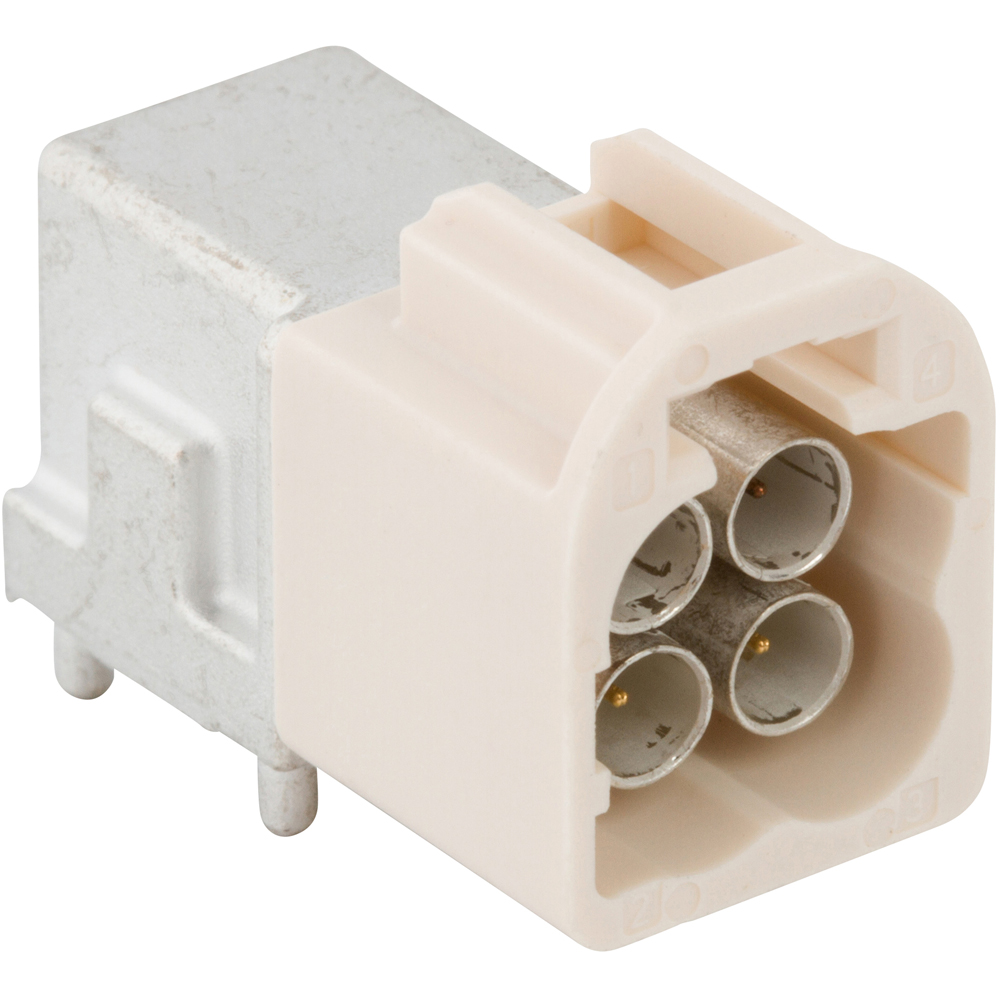

Automate Type A Mini-FAKRA Quad Port PCB Through Hole Right Angle Plug 50 Ohm B Code
AUTOMATE Type A
FM4-NBRP-PCB-1
$8.82
Automate Type A Mini-FAKRA Quad Port PCB Through Hole Right Angle Plug 50 Ohm B Code
| Weight | 0.0096 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Tin |
| Body Material | Zinc Diecast |
| Cable Group | Not Applicable |
| Cable Type | Not Applicable |
| Impedance (Ohms) | 50 |
| Insulator Material | LCP |
| IP Rating | Not Rated |
| Gender | Plug |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 9 |
| Temp (Max Degrees Celsius) | 105 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Contact Finish | Gold |
| Contact Material | Copper Nickel Alloy |
| Orientation | Right Angle |
| Coupling Mechanism | Push-on |
| Mating Cycles (Min) | 25 |
| Termination Style | PCB – Through Hole |
| FAKRA Keycode | B – Cream |
