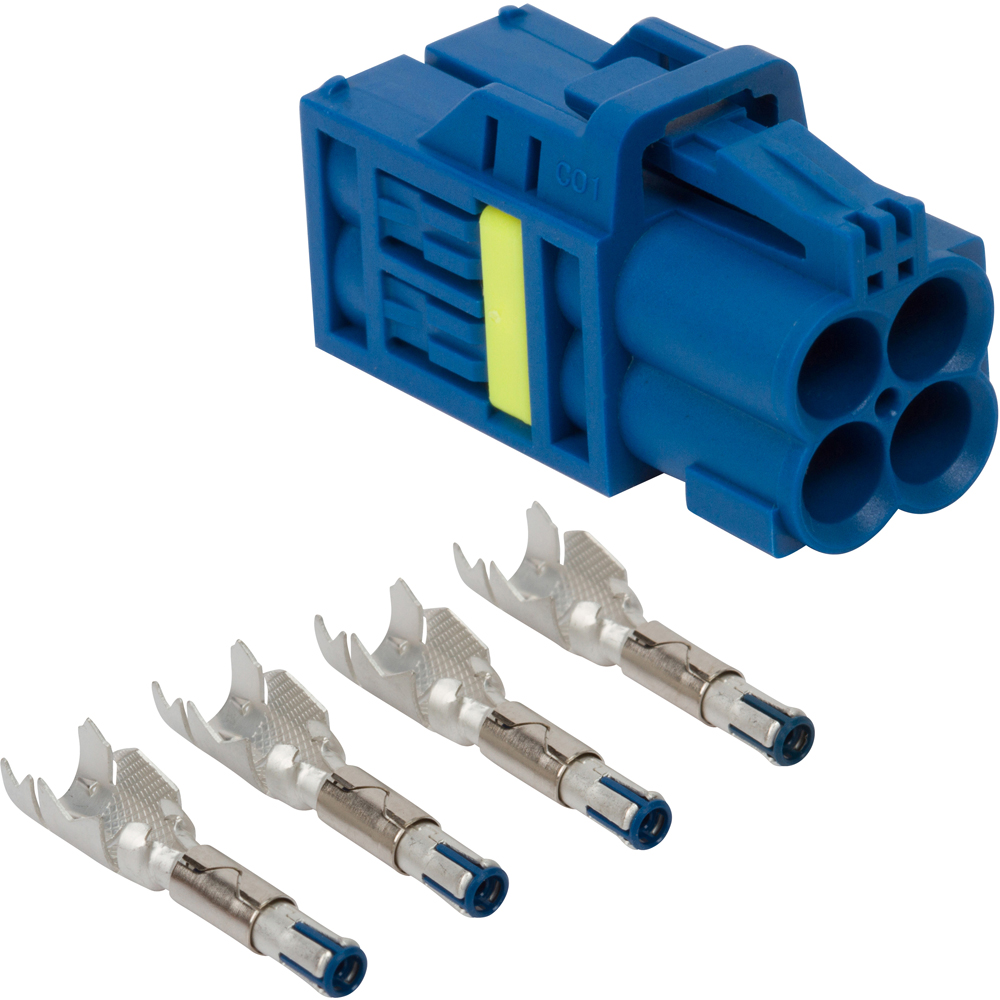

Automate Type A Mini-FAKRA Quad Port Straight Crimp Jack TFC-302LL Dacar 302 RTK-031 50 Ohm C Code. Note: Contact PN 923-10852, Sleeve PN 923-10829 and CPA PN 923-40307 sold separately
AUTOMATE Type A
FM4-NCSJ-C30W0
$999.00
Automate Type A Mini-FAKRA Quad Port Straight Crimp Jack TFC-302LL Dacar 302 RTK-031 50 Ohm C Code
| Weight | 0.00475 kg |
|---|---|
| Manufacturer | Amphenol RF |
| Body Finish | Tin |
| Body Material | Copper Nickel Alloy |
| Cable Group | Auto-59 |
| Cable Type | DACAR 302, RTK 031, TFC 302 LL |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| IP Rating | Not Rated |
| Gender | Jack |
| Panel Mounting Feature | Not Applicable |
| Isolated | No |
| Low PIM | No |
| Frequency (Max GHz) | 15 |
| Temp (Max Degrees Celsius) | 105 |
| Temp (Min Degrees Celsius) | -40 |
| Non Magnetic | No |
| Contact Finish | Not Applicable |
| Contact Material | Not Applicable |
| Orientation | Straight |
| Coupling Mechanism | Push-on |
| Mating Cycles (Min) | 25 |
| Termination Style | Cable – Crimp |
| FAKRA Keycode | C – Signal Blue |
