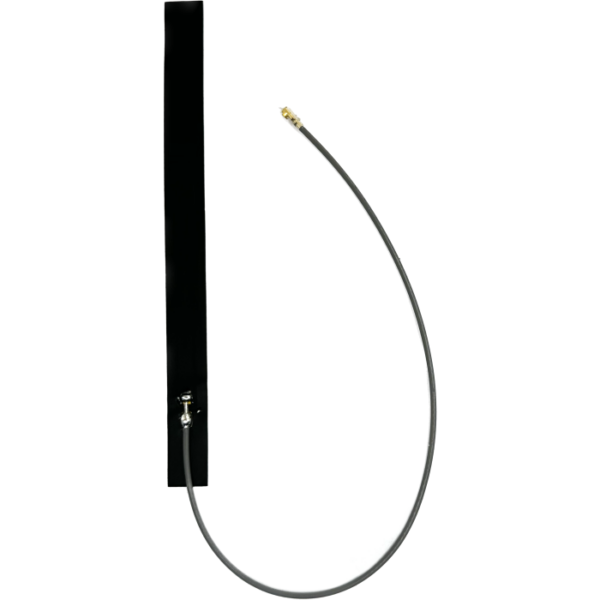

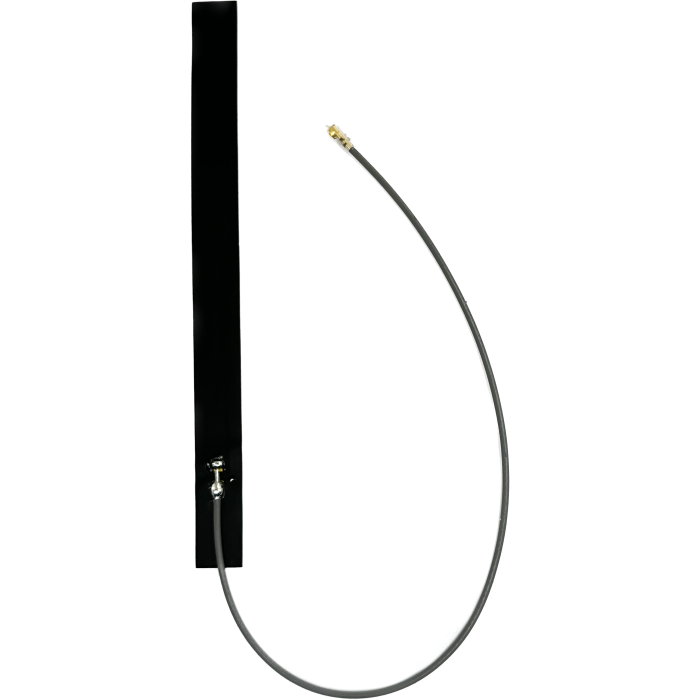

Passive FPC Antenna, 698-960 1710-2170 2300-2690 MHz WWAN, 4G, ISM, IoT, WWAN, IoT, ISM, NB-IoT, 50 Ohms
| Manufacturer | Amphenol RF |
|---|---|
| Antenna Connector Type | AMC Plug |
| Antenna Wireless Application | 4G |
| Band Type | Wide Band |
| Center Frequencies | 1800MHz, 1900MHz, 2100MHz, 2300MHz, 2500MHz, 2600MHz, 700MHz, 800MHz, 900MHz |
| Electrical Type | Dipole |
| ECCN | EAR99 |
| Frequency (Max GHz) | 2.69 |
| IP Rating | Not Rated |
| Impedance (Ohms) | 50 |
| Mechanical Style | FPC Trace |
| Mil Qualified | Not Mil Qualified |
| Number of Bands | 8 |
| Physical Style | Flexible Pad |
| Power (Max Watts) | 1 |
| Temp (Max Degrees Celsius) | 70 |
| Temp (Min Degrees Celsius) | 30 |
| Cable Type (Terminates to) | 1.37 mm Micro-cable |
