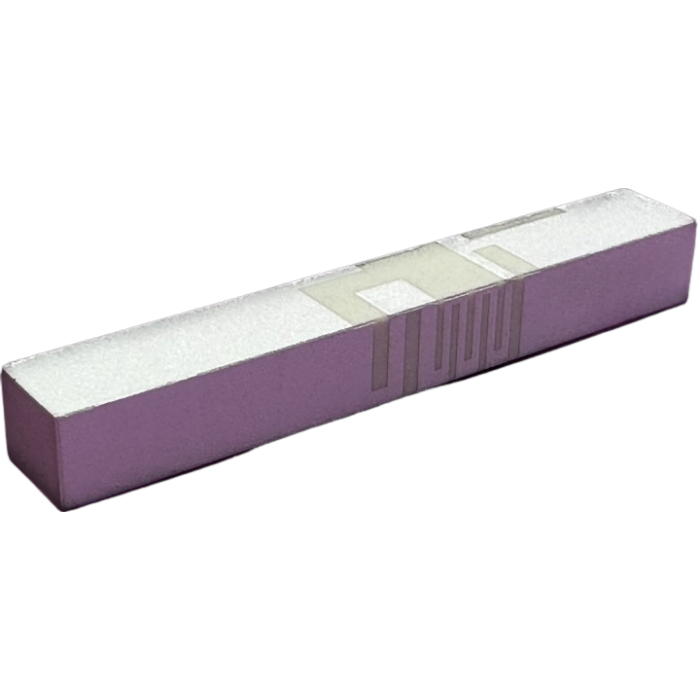

Passive Chip Antenna, 617-960 1710-2690 3300-5000 5150-5925 MHz WWAN, 4G, 5G, ISM, IoT, V2X, DSRC, WWAN, IoT, ISM, NB-IoT, 50 Ohms
| Manufacturer | Amphenol RF |
|---|---|
| Antenna Connector Type | PCB Mount |
| Antenna Wireless Application | 4G, 5G, DSRC, V2X |
| Band Type | Wide Band |
| Center Frequencies | 1500MHz, 1800MHz, 1900MHz, 2100MHz, 2300MHz, 2500MHz, 2600MHz, 3500MHz, 5300MHz, 5400MHz, 5800MHz, 5900MHz, 600MHz, 700MHz, 800MHz, 900MHz |
| Electrical Type | Chip |
| ECCN | EAR99 |
| Frequency (Max GHz) | 5.925 |
| IP Rating | Not Rated |
| Impedance (Ohms) | 50 |
| Mechanical Style | Chip |
| Mil Qualified | Not Mil Qualified |
| Number of Bands | 16 |
| Physical Style | Ceramic |
| Power (Max Watts) | 5 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | 40 |
