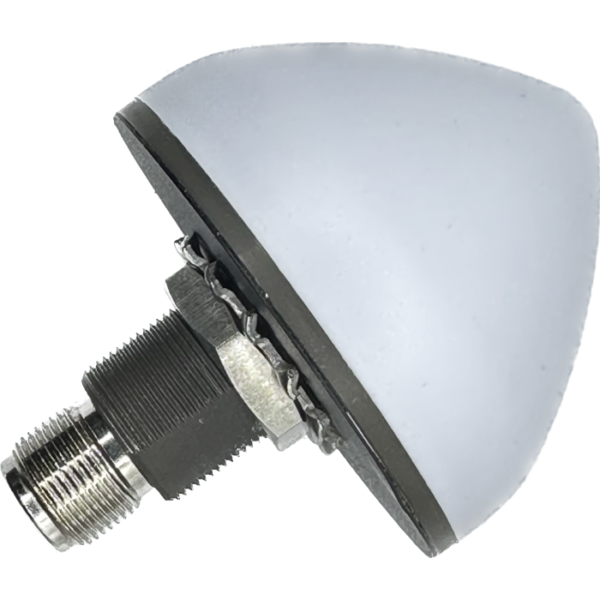

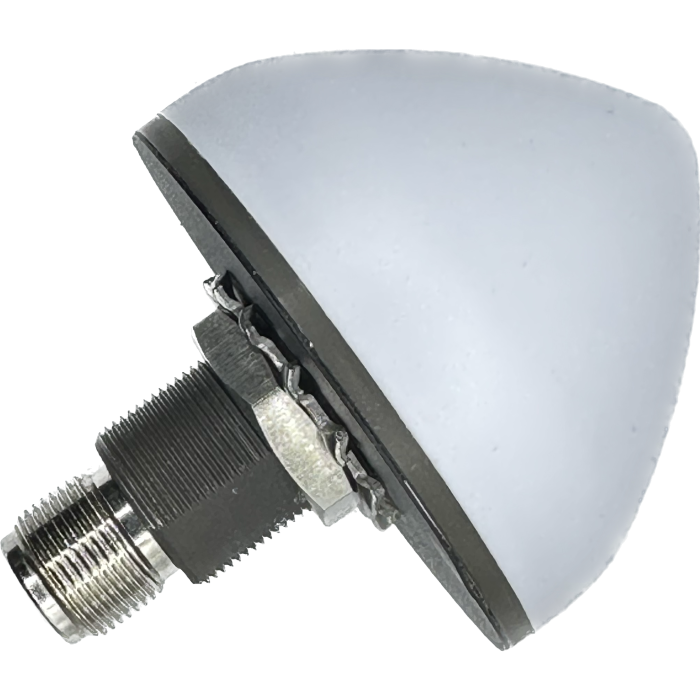

Active External Antenna, 1561 1575.42 1602 MHz GNSS, GPS, GLONASS, BDS, Galileo, QZSS, L1, G1, B1, B1-2, E1, GNSS, 50 Ohms
| Manufacturer | Amphenol RF |
|---|---|
| Antenna Connector Type | N-Type Jack |
| Antenna Wireless Application | B1, B1-2, BDS, E1, G1, Galileo, GLONASS, GNSS, GPS, L1, QZSS |
| Band Type | Multi Band |
| Center Frequencies | 1561MHz, 1575.42MHz, 1602MHz |
| Electrical Type | Patch |
| ECCN | EAR99 |
| Frequency (Max GHz) | 1.606 |
| IP Rating | IP67 |
| Impedance (Ohms) | 50 |
| Mechanical Style | Whip |
| Mil Qualified | Not Mil Qualified |
| Number of Bands | 3 |
| Physical Style | Straight |
| Power (Max Watts) | 2 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | 40 |
