ST0543-00-N07-U

Name: ST0543-00-N07-U
SKU: ST0543-00-N07-U
Price: 999.00 USD
Availability: InStock

$999.00

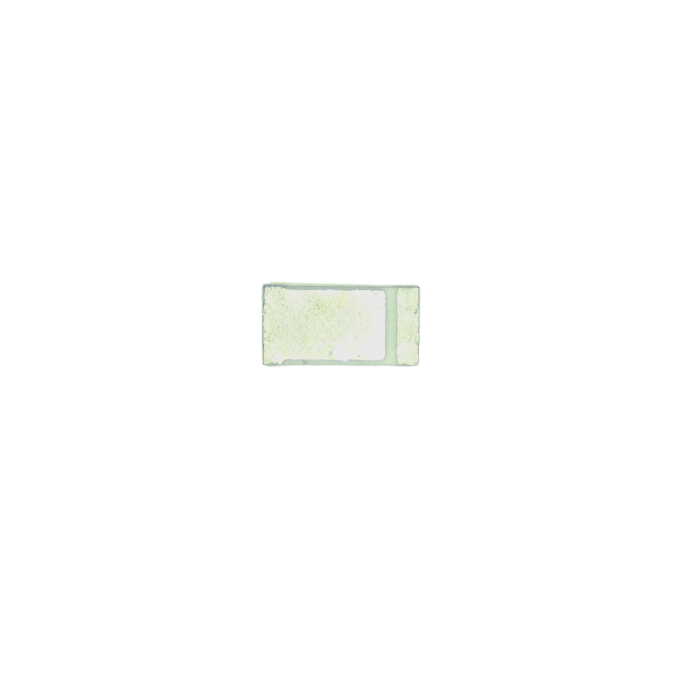

Chip Antenna

SKU: ST0543-00-N07-U Category: Embedded Antennas

Passive Chip Antenna, 1560-1606 MHz GNSS, GPS, GLONASS, BDS, Galileo, QZSS, L1, G1, B1, B1-2, E1, GNSS, 50 Ohms

Manufacturer	Amphenol RF
Antenna Connector Type	PCB Mount
Antenna Wireless Application	B1, B1-2, BDS, E1, G1, Galileo, GLONASS, GNSS, GPS, L1, QZSS
Band Type	Dual Band
Center Frequencies	1561MHz, 1575.42MHz, 1602MHz
Electrical Type	Chip
ECCN	EAR99
Frequency (Max GHz)	1.606
IP Rating	Not Rated
Impedance (Ohms)	50
Mechanical Style	Chip
Mil Qualified	Not Mil Qualified
Number of Bands	3
Physical Style	Ceramic
Power (Max Watts)	2
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	40
