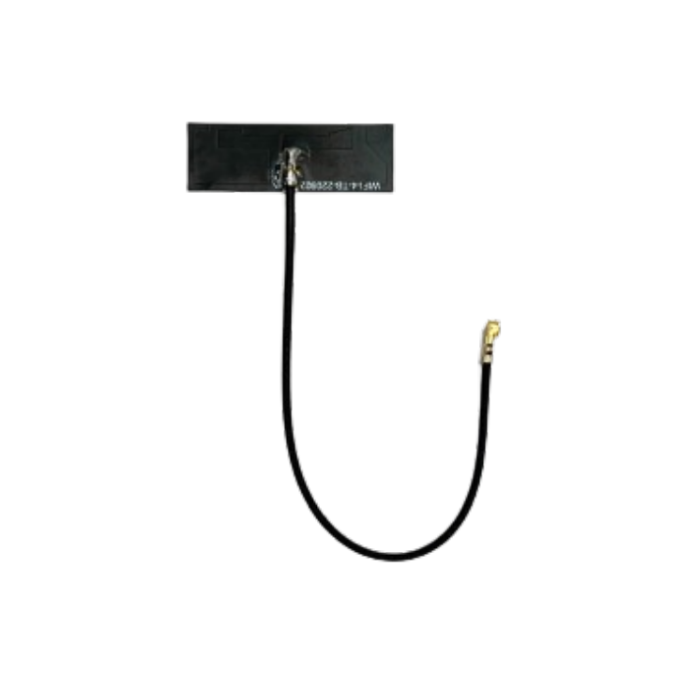

Passive Wi-Fi 6E 2400-2500, 5150-7125 MHz FPC 30×10, Cable : OD1.37 x 100mm 2.4GHz, 5GHz, 6GHz, Tri-band, Bluetooth, Wi-Fi 6E, WLAN, Zigbee IoT, ISM, UNII 50 Ohms
| Manufacturer | Amphenol RF |
|---|---|
| Antenna Connector Type | AMC Plug |
| Antenna Wireless Application | Bluetooth, Wi-Fi 6E, Zigbee |
| Band Type | Multi Band |
| Center Frequencies | 2.45GHz, 5GHz, 6GHz |
| Electrical Type | Dipole |
| ECCN | EAR99 |
| Frequency (Max GHz) | 7.125 |
| IP Rating | Not Rated |
| Impedance (Ohms) | 50 |
| Mechanical Style | FPC Trace |
| Mil Qualified | Not Mil Qualified |
| Number of Bands | 3 |
| Physical Style | Flexible Pad |
| Power (Max Watts) | 1 |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | 40 |
| Cable Type (Terminates to) | 1.37 mm Micro-cable |
